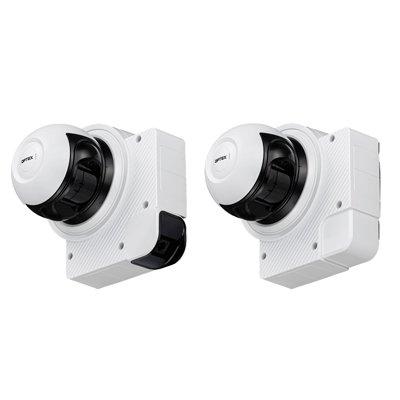

OPTEX RLS-2020A Advanced LiDAR Sensors For Indoor/ Outdoor High-security Applications

Redscan mini-Pro is a high-performance laser scan sensor that can identify an object's size, distance from the sensor, and speed. In normal mode, a single sensor can be used to cover a 20 x 20 m detection area, ensuring a robust intrusion alert system for both indoor and outdoor environments.

Adopting newly developed infrared LED lighting technology and a full-HD camera, Optex's latest laser scan sensor offers improved video-based confirmation functionality for increased ease of use and greater usability in various environments.

Features

Vertical or horizontal mount is selectable

REDSCAN mini-Pro series can be installed vertically, horizontally.

Selectable installation method

REDSCAN mini-Pro series have 3 installation methods as Wall, Ceiling and Pole. You can select either method to match the installation site.

Built-in FHD Camera and IR LED

RLS-2020V has a build-in FHD camera with IR LED providing clear image in 1080P resolution. The pre and post alarm camera images are recorded in internal memory of the unit (alarm logs : 500 events) and can be played back for verification.

Map Screen Display

Both RLS-2020V and 2020A can stream live images instead of video images from the camera. Any photo or image can be used to overlap the detection area.

Connectivity and interoperability

Redscan mini-Pro is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices. The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3 protocols.

Dynamic Event Filtering

A function that determines an alarm after combining object detections in 2 separate areas (Alert area and Judgment area).
