IDIS Micro Dome Ideal For High End Settings

Product Profile

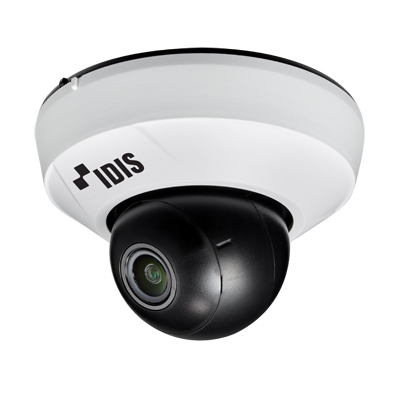

The new DC-C4212RX 2MP micro dome camera is the latest addition to the DirectIP® line up from IDIS, which is South Korea’s largest in-country manufacturer of surveillance technology.

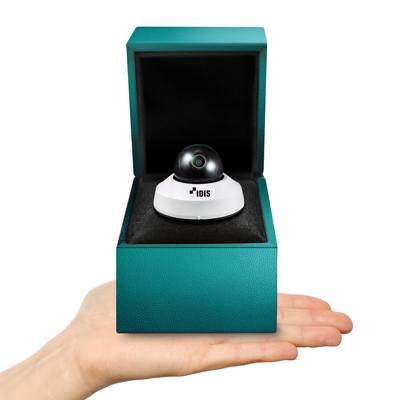

The compact design of the DC-C4212RX makes it the best choice for understated, less noticeable installation.  The neat aesthetics are ideal for applications where there is a need for unobtrusive surveillance but where comprehensive, high-performance video capture is paramount.

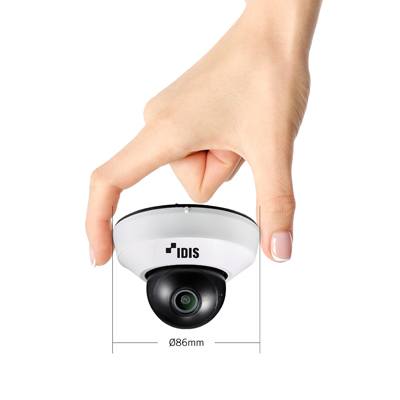

Measuring only 86 mm x 58 mm and weighing just 105 grams, the DC-C4212RX delivers advanced benefits within its lower profile and is the right choice for high-end locations such as jewellery shops and boutiques, as well as up-market restaurants and luxury hotels.

The DC-C4212RX offers all the key benefits that installers expect from IDIS DirectIP dome cameras, including the company’s signature plug-and-play installation and configuration. The elimination of a pigtail cable allows faster and easier deployment.

The 3-axis mechanical lens enables rotation and easy angle adjustment, making it an important design feature for precise image capture, particularly when the camera needs to be discretely wall-mounted.  The camera can also operate in a wide range of lighting conditions, delivering high performance live monitoring and playback.

Other key features include true wide dynamic range (WDR); IR LED illumination up to 15m with day and night ICR; dual codec H.264/H.265 performance; and easy, plug-and-play integration with IDIS VA in the Box. This cost-effective video analytics appliance delivers value-add business intelligence gained from heat mapping, people counting, queue management and comprehensive reporting.

“Our new micro dome is a great camera for installers to work with and it delivers outstanding surveillance capability for customers,” says James Min, Managing Director of IDIS Europe. “It further strengthens our end-to-end offering for retail applications, including high street fashion, boutiques, dining, pubs and coffee shops - markets in which we have gained significant market share globally.”

Read more

Technical Specification

Make IDIS
Manufacturer IDIS
Model code DC-C4212RX
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 1080p
Sensitivity lux 0 ~ 0.1
Digital (DSP) Yes
Electrical Specifications Voltage: PoE
Power Consumption: 3.6W
Focal length 2.8mm
Compression H.265, H.264 (MP) M-JPEG
Back Light Compensation Yes
White Balance Yes
Electronic Shutter range Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Built-in IR LED Yes
Network Properties Interface: RJ45 (10/100BASE-T)
Network Protocols: DirectIP Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP, RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Physical Specifications Dimensions mm: Ø86 x 58
Weight g: 105
Environmental Specifications Operating Temp oC: -10 ~ +50 C (14 ~ 122 F)
Operating Humidity %: 0 ~ 90
Additional info
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm)
  • PoE (IEEE 802.3af Class 1)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 15m / 49.2ft)
  • 3-axis mechanical design for installation
  • Supports ONVIF
