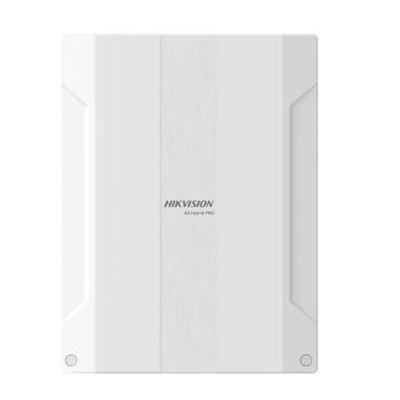

Hikvision DS-PHA48-EP(B) AX Hybrid Pro Wired Intrusion Alarm
Technical Specification
- Make: Hikvision
- Model code: DS-PHA48-EP(B)
- Control Panels & Accessories: Yes
- Tamper: Yes
- No of Zones: 8 on-board zones and 40 wired/wireless zones
Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 NO/NC outputs and 2 PGM outputs), and 44 wired/wireless outputs expandable Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority 2-ch onboard IP camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag Pushes alarm notification via messages and Hik-Connect Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol Supports 1 Speed-X BUS
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision USA Inc. |
| Category | Intruder Alarms>Intruder alarm system control panels & accessories |
| Model code | DS-PHA48-EP(B) |
| Control Panels & Accessories | Yes |
| Tamper | Yes |
| No of Zones | 8 on-board zones and 40 wired/wireless zones |
| Keypad Operated | Yes |
| Upload/ Download | Upload |
| Physical Specifications | Dimensions mm: 261 x 199 x 86.4 |
| Environmental Specifications | Operating Temp oC: -10 ~ +40 C (14 ~ 104 F) |
Product description
Hikvision AX Hybrid Pro Control Panel (Model: DS-PHA48-EP(B))
The Hikvision AX Hybrid Pro control panel, DS-PHA48-EP(B), is an innovative wired intrusion control panel with exceptional capability to integrate wireless detectors and peripherals. Noteworthy for introducing the Speed-X bus technology, this control panel offers seamless transmission of video or picture verification from the PIR-CAM.
Key Features
- Hybrid System: Accommodates 8 on-board zones expandable to 48 zones, supporting both wired and wireless configurations.
- Customised Alerts: Includes support for a personalised voice library, allowing users to upload specific voice files for alarm notifications.
- Flexible Communication: Offers TCP/IP, GPRS/3G/4G communication methods and dual path communication for reliable alarm event transmission.
- Video Verification: Supports 2-channel IP camera video verification, including both pre-alarm and post-alarm recording functionalities.
- Comprehensive Management: Compatible with Hik-ProConnect, Hik-Connect, Hik IP Receiver, and more for flexible management and monitoring solutions.
Ideal Use Cases
The DS-PHA48-EP(B) is well-suited for various environments requiring robust security solutions, including markets, hotels, supermarkets, warehouses, offices, and residential houses, particularly those with pre-installed cables. Its versatile design ensures adaptability to different scenarios, making it an ideal choice for security professionals seeking a reliable and integrated control panel.
