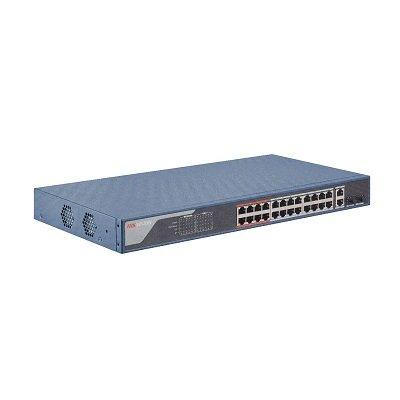

Hikvision DS-3E1326P-EI 24 Port Fast Ethernet Smart POE Switch
Technical Specification
- Make: Hikvision
- Model code: DS-3E1326P-EI
- POE: Yes
- Video inputs / ports: 24
- Dimensions mm: 440 x 44 x 221
• 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode.
Read moreMake | Hikvision |
---|---|
Manufacturer | Hikvision USA Inc. |
Category | Video Surveillance>Switchers & Switches |
Model code | DS-3E1326P-EI |
POE | Yes |
Video inputs / ports | 24 |
Physical Specifications |
Dimensions mm: 440 x 44 x 221 Weight g: 2,830 |
Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 400 W |
Environmental Specifications |
Operating Temperature oC: -10 ~ 55 C (14 ~ 131 F) Operating Humidity %: 5 ~ 95 |
Additional info |
|
Download PDF version Download PDF version |
