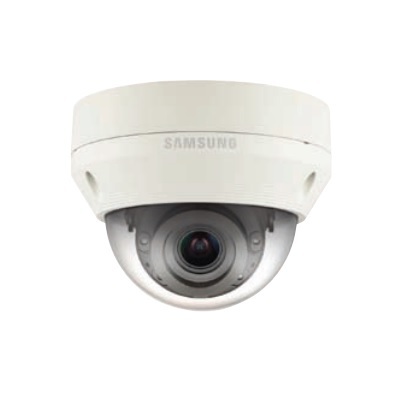

Hanwha Techwin America QNV-7020R 4M Vandal-Resistant Network IR Dome Camera

Technical Specification

Features:

Make: Hanwha Vision
Model code: QNV-7020R
Series: WISENET Q SERIES
Chip Inch Size: 1/3
Color Type: True Day / Night

Additional info:

Max. 4megapixel resolution Built-in 2.8mm fixed lens (QNV-7010R) 3.6mm fixed lens (QNV-7020R) 6mm fixed lens (QNV-7030R) Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264) H.265, H.264, MJPEG codec supported, Multiple streaming Motion detection, Tampering, Defocus detection

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Category	Video Surveillance>IP Dome cameras
Model code	QNV-7020R
Series	WISENET Q SERIES
Chip Inch Size	1/3
Color Type	True Day / Night
Resolution TVL	4MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0 ~ 0.5
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 5.7 ~ 7 W
Focal length	2.8 ~ 6mm
Compression	H.265, H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	50
Built-in IR LED	Yes
Network Properties	Interface: RJ-45 (10/100BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Image Frame Rate: 15 ~ 30 fps
Physical Specifications	Dimensions mm: 120 x 92 Weight g: 490
Environmental Specifications	Operating Temp ^oC: -30 ~ +55 C (-22 ~ +131 F) Operating Humidity %: < 90 Protection: IP66, IK10
System Requirements	Operating System: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Web Browser: Google Chrome 47, MS Edge 20
Additional info	Max. 4megapixel resolution Built-in 2.8mm fixed lens (QNV-7010R) 3.6mm fixed lens (QNV-7020R) 6mm fixed lens (QNV-7030R) Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264) H.265, H.264, MJPEG codec supported, Multiple streaming Motion detection, Tampering, Defocus detection
