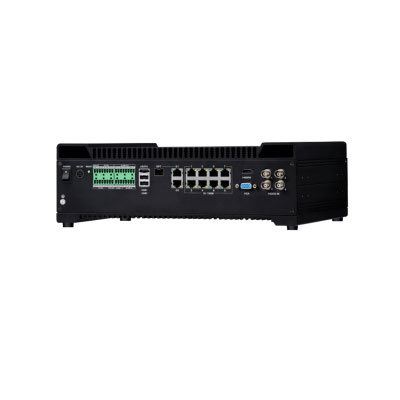

Dahua Technology ITASE0804-GN5B-D Edge Storage

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology ITASE0804-GN5B-D Edge Storage

Features:

Make: Dahua Technology
Model code: ITASE0804-GN5B-D
Video inputs: 12
Hardware solution: Yes
Inbuilt multiplexer: Yes

Additional info:

Embedded design for Linux and processing. 12 channel HD IP camera input, 4 channel analog camera input. Support image combining. 4 SATA ports for 3.5 and 2.5 inch HDD. Heat dissipation without mechanical fan, working environment -30℃~+70℃. Support video and snapshot synchronization. Support LCD screen, VGA and HDMI port

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	ITASE0804-GN5B-D
Video inputs	12
Hardware solution	Yes
Inbuilt multiplexer	Yes
Recording system	HDD
Secondary storage	USB
Alarm Handling	4 in, 4 out
Operating system	Embedded Linux
Electrical Specifications	Voltage: 12 V DC Power consumption (W): 40W
Environmental Specifications	Operating temperature (°C): -30 ~ + 70 C (-22 ~ +158 F) Operating humidity (%): 10 ~ 90
Additional info	Embedded design for Linux and processing. 12 channel HD IP camera input, 4 channel analog camera input. Support image combining. 4 SATA ports for 3.5 and 2.5 inch HDD. Heat dissipation without mechanical fan, working environment -30℃~+70℃. Support video and snapshot synchronization. Support LCD screen, VGA and HDMI port
