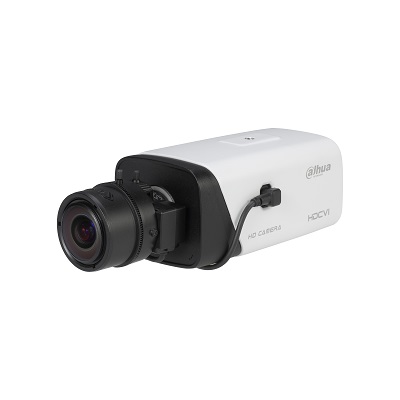

Dahua Technology HAC-HF3231E 2MP Starlight HDCVI Box Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: HAC-HF3231E
  • Series: Ultra series
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

Starlight, 120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output C/CS lens AC24V/DC12V

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code HAC-HF3231E
Series Ultra series
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 2MP
HD Yes
Digital (DSP) Yes
Auto Iris Yes
Direct Drive Yes
Sensitivity lux 0 ~ 0.005
Lens Mount C/CS
Electrical Specifications Voltage: 12 V DC, 24 V AC
Power Consumption: 4.7 W
Motion Activated Yes
Wide Dynamic Range Yes
Picture Elements HxV 1945 x 1097
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1.3 ~ 1/30000s
S/ N (Signal/ Noise) Ratio dB 65
Signal Mode PAL, NTSC
Physical Specifications Dimension mm: 135 x 74 x 66
Weight g: 490
Environmental Specifications Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 90
Additional info
  • Starlight, 120dB true WDR, 3DNR
  • Max 30fps@1080P
  • HD and SD dual-output
  • C/CS lens
  • AC24V/DC12V
