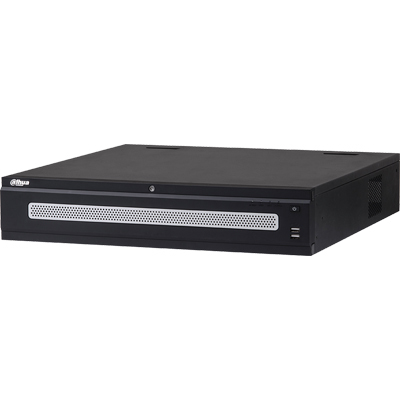

Dahua Technology DHI-NVR6A08-64-4KS2 4K 64CH 2U NVR

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DHI-NVR6A08-64-4KS2
  • Video inputs: 64
  • Inbuilt multiplexer: Yes
  • Recording system: HDD
Read more
Additional info:

H.265/H.264/MJPEG Video Compression Maximum 64 IP Camera Inputs with IVS Recording Maximum 384 Mbps Incoming Bandwidth Up to 12 MP Resolution for Preview and Playback Supports RAID 0 /1/5/6/10 iSCSI for Expanded Storage Space Smart Tracking Intelligent Video System with Business Analytics (two IP channels)

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Category Video Surveillance>Network Video Recorders (NVRs)
Model code DHI-NVR6A08-64-4KS2
Video inputs 64
Inbuilt multiplexer Yes
Recording system HDD
Secondary storage USB
Storage rate 15 fps, 20 fps, 30 fps, 60 fps
Resolution 4K
PTZ control Yes
Alarm Handling 16 in, 8 out
Video motion detection Yes
Operating system Embedded Linux
Electrical Specifications Voltage: 110 ~ 240 V AC
Power consumption (W): < 20 W
Physical Specifications Weight (kg): 9
Dimensions (mm): 444 x 455 x 90
Environmental Specifications Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F )
Additional info
  • H.265/H.264/MJPEG Video Compression
  • Maximum 64 IP Camera Inputs with IVS Recording
  • Maximum 384 Mbps Incoming Bandwidth
  • Up to 12 MP Resolution for Preview and Playback
  • Supports RAID 0 /1/5/6/10
  • iSCSI for Expanded Storage Space
  • Smart Tracking
  • Intelligent Video System with Business Analytics (two IP channels)
Download PDF version Download PDF version
