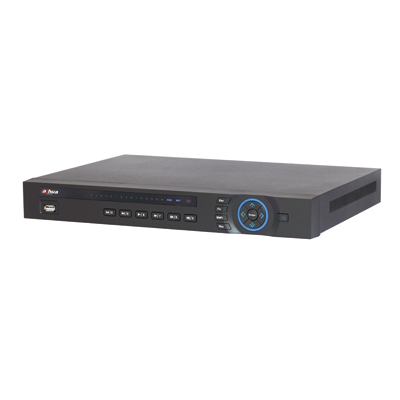

Dahua Technology DH-NVR4204 4 Channel Network Video Recorder

Please note: this is a discontinued product.

See relevant products

Dahua DH-NVR4204 key features

Up to 4/8/16/32 channel with 1080Prealtime live view
H.264/MJPEG dual codec decoding
Max 160Mbps incoming bandwidth
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
ONVIF Version 2.2 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Contact manufacturer Contact manufacturer

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	DH-NVR4204
Recording Mode	Real Time / Timelapse / Event
Video inputs	4
Hardware solution	Yes
Inbuilt multiplexer	Yes
Recording system	HDD
Storage capacity	8 TB
Secondary storage	USB
Resolution	5 MP
PTZ control	Yes
Alarm Handling	4 in
Video motion detection	Yes
Operating system	Embedded LINUX
Electrical Specifications	Voltage: 12 V DC Power consumption (W): 20
Physical Specifications	Weight (kg): 2.3 Dimensions (mm): 375 x 285 x 50
Environmental Specifications	Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90
Additional info	Dahua Technology DH-NVR4204 is a 4 channel network video recorder with up to 5 MP resolution. It has 4 channel synchronous real-time playback, GRID interface. The recorder supports multi-brand network cameras.
