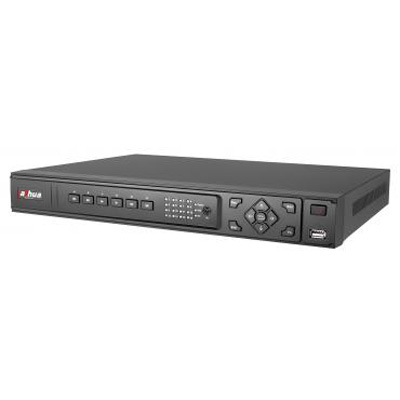

Dahua Technology DH-NVR3204 4 Channel 1U NVR

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-NVR3204 4 Channel 1U NVR

Features:

Make: Dahua Technology
Model code: DH-NVR3204
Recording Mode: Real Time / Timelapse / Event
Video inputs: 4
Hardware solution: Yes

Additional info:

DH-NVR3204 is a 4 channel 1U network video recorder with various features: H.264/MJPEGdual codec decoding; HDMI / VGA simultaneous video output; All channel synchronous realtime playback, GRID interface; Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.; 3D intelligent positioning with Dahua PTZ camera; Support 2 SATA HDDs up to 8TB, 2 USB2.0.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	DH-NVR3204
Recording Mode	Real Time / Timelapse / Event
Video inputs	4
Hardware solution	Yes
Recording system	HDD
Storage capacity	8 TB
Storage rate	120
Resolution	1920 × 1080
Electrical Specifications	Voltage: 12 VDC Power consumption (W): 20W
Physical Specifications	Weight (kg): 2.3 Dimensions (mm): 375 x 285 x 50
Environmental Specifications	Operating temperature (°C): -10 ~ +55 Operating humidity (%): 10 ~ 90
Additional info	DH-NVR3204 is a 4 channel 1U network video recorder with various features: H.264/MJPEGdual codec decoding; HDMI / VGA simultaneous video output; All channel synchronous realtime playback, GRID interface; Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.; 3D intelligent positioning with Dahua PTZ camera; Support 2 SATA HDDs up to 8TB, 2 USB2.0.
Download PDF version Download PDF version
