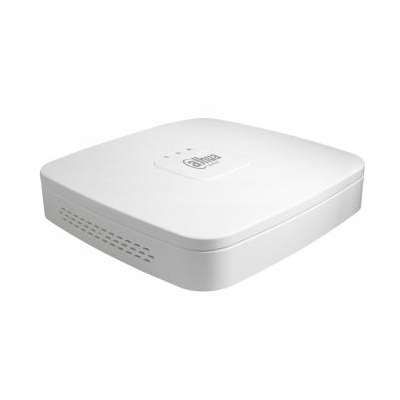

Dahua Technology DH-NVR1108 8-channel network video recorder

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-NVR1108 8-channel network video recorder

Features:

Make: Dahua Technology
Model code: DH-NVR1108
Recording Mode: Real Time / Timelapse / Event
Video inputs: 8
Hardware solution: Yes

Additional info:

Dahua Technology DH-NVR1108 is a 8-channel network video recorder with H.264/MJPEG dual codec decoding, max 80Mbps incoming bandwidth, HDMI/VGA simultaneous video output, ONVIF Version 2.3 conformance, 3D intelligent positioning and multiple network monitoring.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	DH-NVR1108
Recording Mode	Real Time / Timelapse / Event
Video inputs	8
Hardware solution	Yes
Inbuilt multiplexer	Yes
Type of multiplexer functions	Recording, Playback, Viewing
Recording system	HDD
Storage capacity	4 TB
Secondary storage	USB
Resolution	1920 × 1080
Video motion detection	Yes
Operating system	LINUX
Electrical Specifications	Voltage: 12 V DC Power consumption (W): 10
Physical Specifications	Weight (kg): 500 g Dimensions (mm): 205 x 205 x 45
Environmental Specifications	Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90
Additional info	Dahua Technology DH-NVR1108 is a 8-channel network video recorder with H.264/MJPEG dual codec decoding, max 80Mbps incoming bandwidth, HDMI/VGA simultaneous video output, ONVIF Version 2.3 conformance, 3D intelligent positioning and multiple network monitoring.
