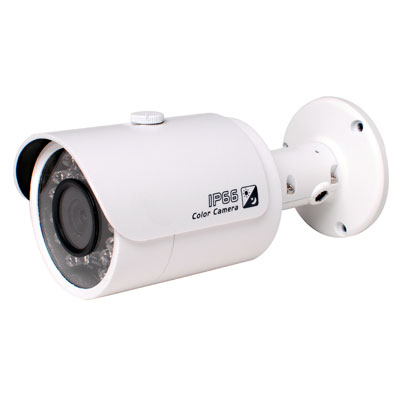

Dahua Full HD 1080P Mini IR HD-SDI Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-HDC-HFW2200SN
  • Chip Inch Size ": 1/3
  • Color Type: True Day / Night
  • Resolution TVL: 3 MP
Read more
Additional info:

Dahua DH-HDC-HFW2200SN is a 1080P mini HD-SDI bullet camera. It features 3.6mm fixed lens, max.IR LEDs length 20m, and OSD, DC12V, IP66.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-HDC-HFW2200SN
Chip Inch Size " 1/3
Color Type True Day / Night
Resolution TVL 3 MP
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: <6W
Focal Length mm 3.6
Picture Elements HxV 1920 x 1080
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/4 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB >52
Physical Specifications Dimension mm: 113 x 86
Weight g: 290
Environmental Specifications Operating Temperature oC: -10 ~ +60
Protection: IP66
Additional info Dahua DH-HDC-HFW2200SN is a 1080P mini HD-SDI bullet camera. It features 3.6mm fixed lens, max.IR LEDs length 20m, and OSD, DC12V, IP66.
