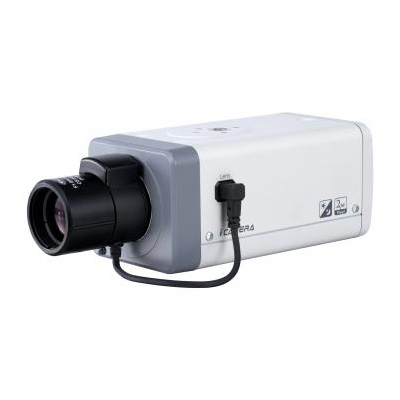

Dahua Technology DH-HDC-HF3200N 2 MP HD-SDI Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-HDC-HF3200N
- Chip Inch Size ": 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 1920 x 1080
Additional info:
Dahua Technology DH-HDC-HF3200N 2 MP HD-SDI camera has the following features: DWDR, day/night(ICR), 2DNR, AWB, auto iris, AGC, BLC, OSD, AC24V/DC12V, high definition digital interface.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Surveillance cameras |
| Model code | DH-HDC-HF3200N |
| Chip Inch Size " | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 1920 x 1080 |
| HD | Yes |
| Digital (DSP) | Yes |
| Auto Iris | Yes |
| Sensitivity lux | 0.01 |
| Lens Mount | C/CS |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 8.5 W |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1920 x 1080 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/4 ~ 1/10,000 s |
| S/ N (Signal/ Noise) Ratio dB | >52 |
| Video Output | 1Vp-p Composite Output (75 ohms/BNC) |
| Physical Specifications |
Dimension mm: 70 x 149 x 63 Weight g: 650 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (+14 ~ +140 F) Operating Humidity %: 10 ~ 90 |
| Additional info | Dahua Technology DH-HDC-HF3200N 2 MP HD-SDI camera has the following features: DWDR, day/night(ICR), 2DNR, AWB, auto iris, AGC, BLC, OSD, AC24V/DC12V, high definition digital interface. |
