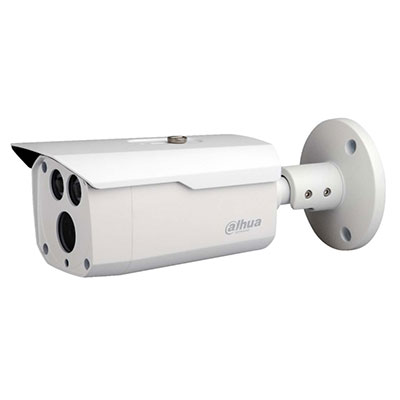

Dahua Technology DH-HAC-HFW2221DN 2.1 Megapixel 1080P Water-Proof WDR HDCVI IR-Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-HAC-HFW2221DN
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 1080p
Read more
Additional info:

1/2.7" 2.1Megapixel CMOS 25/30fps@1080P, 25/30/50/60fps@720P High speed, long distance real-time transmission HD and SD dual-output OSD Menu, control over coaxial cable WDR(120dB), Day/Night(ICR),AWB, AGC, BLC, 3DNR 3.6mm fixed lens (6mm, 8mm, 12mm optional) Max. IR LEDs length 80m, Smart IR IP67, DC12V

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-HAC-HFW2221DN
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 1080p
HD Yes
Digital (DSP) Yes
Specialist Types Infrared
Auto Iris Yes
Direct Drive Yes
Sensitivity lux 0.03
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5.7 W
Focal Length mm 3.6
Picture Elements HxV 1928 x 1088
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3s ~ 1/300,000s
Synchronisation Internal
Video Output 1-channel BNC HDCVI/CVBS
Physical Specifications Dimension mm: 242 x 90 x 84
Weight g: 635
Environmental Specifications Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Protection: IP67
Operating Humidity %: 0 ~ 95
Additional info
  • 1/2.7" 2.1Megapixel CMOS
  • 25/30fps@1080P, 25/30/50/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD dual-output
  • OSD Menu, control over coaxial cable
  • WDR(120dB), Day/Night(ICR),AWB, AGC, BLC, 3DNR
  • 3.6mm fixed lens (6mm, 8mm, 12mm optional)
  • Max. IR LEDs length 80m, Smart IR
  • IP67, DC12V
