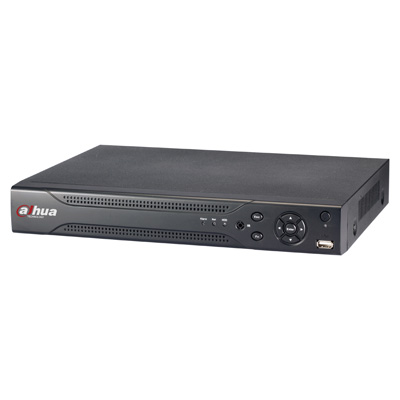

Dahua Technology DH-DVR1604LF-AS Is A 16 Channel DVR
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Digital video recorders (DVRs) |
| Model code | DH-DVR1604LF-AS |
| Channels | 16 |
| Recording Mode | Real time / Timelapse |
| Alarm I/O | 4 |
| Storage Capacity GB | 4000 |
| Image per second (IPS) | 30 |
| Compression Type | H.264 |
| Resolution | 1920 x 1080 |
| Signal Mode | PAL / NTSC |
| Recording System | HDD |
| IP Storage rate (fps) | 30 |
| Network Type | HTTP, TCP/IP, IPv4/IPv6,UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server |
| Physical Specifications |
Dimensions mm: 325 x 240 x 45 Weight kg: 1.5 |
| Electrical Specifications |
Voltage: 12 VDC Power Consumption: 10 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 Operating Humidity %: 10 ~ 90 |
| Additional info | DH-DVR1604LF-AS is a 16 channel DVR featuring all channel synchronous realtime playback, GRID interface & smart search. |
