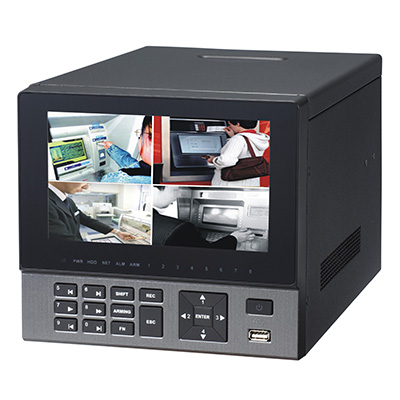

Dahua Technology DH-DVR0804AH-V(D) 8-channel 960H 4 HDD ATM Standalone DVR
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-DVR0804AH-V(D)
- Channels: 8
- Recording Mode: Real Time / Timelapse / Event
- Inbuilt Multiplexer: Yes
Additional info:
Dahua DH-DVR0804AH-V(D) is a 8-channel 960H 4HDD ATM standalone DVR with the following features: HDMI/VGA/TV simultaneous video output Full channel synchronous realtime playback 3D intelligent positioning with DAHUA PTZ dome Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Digital video recorders (DVRs) |
| Model code | DH-DVR0804AH-V(D) |
| Channels | 8 |
| Recording Mode | Real Time / Timelapse / Event |
| Inbuilt Multiplexer | Yes |
| Alarm I/O | 9 in, 6 out |
| Compression Type | H.264 |
| Resolution | 1280 x 1024 |
| Signal Mode | PAL / NTSC |
| External Storage | USB |
| Audio Recording and Properties | G.711 |
| Recording System | HDD |
| IP Storage rate (fps) | 30 fps |
| Physical Specifications |
Dimensions mm: 200 x 300 x 180 Weight kg: 3.5 ~ 4.5 |
| Electrical Specifications |
Voltage: 100 ~ 240 V AC Power Consumption: 20 W |
| Environmental Specifications |
Operating Temp oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90 |
| Additional info |
Dahua DH-DVR0804AH-V(D) is a 8-channel 960H 4HDD ATM standalone DVR with the following features:
|
