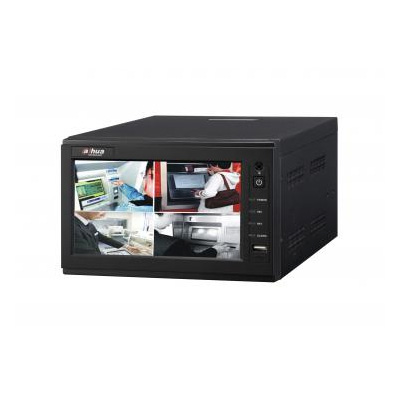

Dahua Technology DH-DVR0404AS-VD 4 Channel 960H 2HDD ATM Standalone DVR

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-DVR0404AS-VD 4 Channel 960H 2HDD ATM Standalone DVR

Features:

Make: Dahua Technology
Model code: DH-DVR0404AS-VD
Channels: 4
Recording Mode: Real Time / Timelapse / Event
Inbuilt Multiplexer: Yes

Additional info:

Dahua Technology DH-DVR0404AS-VD 4 channel 960H 2HDD ATM standalone DVR supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The DVR features full channel synchronous realtime playback, 3D intelligent positioning with DAHUA PTZ dome, HDMI/VGA/TV simultaneous video output, up to 2 SATA HDDs, 2 USB2.0.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Digital video recorders (DVRs)
Model code	DH-DVR0404AS-VD
Channels	4
Recording Mode	Real Time / Timelapse / Event
Inbuilt Multiplexer	Yes
Alarm I/O	4 in, 2 out
Compression Type	H.264
Resolution	960 x 576
Signal Mode	PAL / NTSC
External Storage	USB
Audio Recording and Properties	G.711
Recording System	HDD
Type of Multiplexer Functions	Playback, Recording & Viewing
IP Storage rate (fps)	30
Physical Specifications	Dimensions mm: 200 x 130 x 320 Weight kg: 4.5
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: 22 W
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Additional info	Dahua Technology DH-DVR0404AS-VD 4 channel 960H 2HDD ATM standalone DVR supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The DVR features full channel synchronous realtime playback, 3D intelligent positioning with DAHUA PTZ dome, HDMI/VGA/TV simultaneous video output, up to 2 SATA HDDs, 2 USB2.0.
