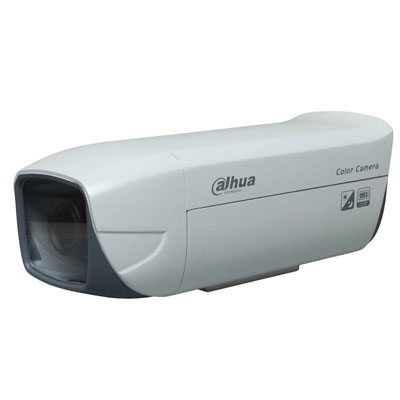

Dahua Technology DH-CA-Z7823BP 700 TVL Day/night Zoom Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-Z7823BP
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 700
Read more
Additional info:

Dahua Technology DH-CA-Z7823BP is a day/night zoom camera with 700 TVL.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-Z7823BP
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 700
Digital (DSP) Yes
Auto Iris Yes
Sensitivity lux 0.001
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5.4 W
Focal Length mm 3.9 ~ 89.7
Wide Dynamic Range Yes
Picture Elements HxV 976 x 582
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/1s ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB >50
Synchronisation Internal
Zoom Yes
Video Output 1Vp-p Composite Output (75 ohm/BNC)
Physical Specifications Dimension mm: 96 x 238 x 94
Weight g: 950
Environmental Specifications Operating Temperature oC: -10 ~ +60
Operating Humidity %: 20 ~ 80
Additional info Dahua Technology DH-CA-Z7823BP is a day/night zoom camera with 700 TVL.
Download PDF version
