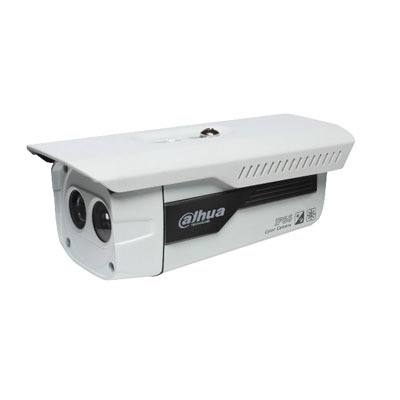

Dahua Technology DH-CA-FW191DN-IN 800 TVL HDIS Water-proof IR Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-FW191DN-IN
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 800
Read more
Additional info:

Dahua Technology DH-CA-FW191DN-IN is a 800 TVL HDIS water-proof IR camera that features 6mm fixed lens and max. IR LEDs length 30m , Smart IR.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-FW191DN-IN
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 800
Digital (DSP) Yes
Specialist Types Infrared
Sensitivity lux 0.02
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4.5 W
Focal Length mm 6
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB >65
Synchronisation Internal
Video Output 1 Vp-p composite output (75 ohms/BNC)
Physical Specifications Dimension mm: 89 x 200 x 80
Weight g: 450
Environmental Specifications Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP66
Operating Humidity %: 20 ~ 80
Additional info Dahua Technology DH-CA-FW191DN-IN is a 800 TVL HDIS water-proof IR camera that features 6mm fixed lens and max. IR LEDs length 30m , Smart IR.
