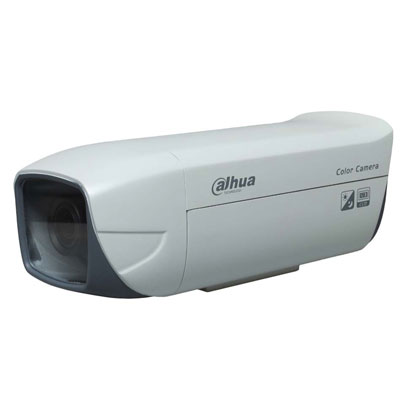

Dahua Technology DH-CA-F781DP-A 700 TVL Day/night Low Light Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-CA-F781DP-A
- Chip Inch Size ": 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 700
Make | Dahua Technology |
---|---|
Manufacturer | Dahua Technology USA Inc. |
Category | Video Surveillance>Surveillance cameras |
Model code | DH-CA-F781DP-A |
Chip Inch Size " | 1/3 |
Color Type | Color / Monochrome |
Resolution TVL | 700 |
Digital (DSP) | Yes |
Auto Iris | Yes |
Sensitivity lux | 0.001 |
Electrical Specifications |
Voltage: 24 V AC Power Consumption: 6 W |
Focal Length mm | 2.7 ~ 9 |
Wide Dynamic Range | Yes |
Picture Elements HxV | 976 x 582 |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter range | 1/50s ~ 1/100,000s |
S/ N (Signal/ Noise) Ratio dB | > 60 |
Synchronisation | Internal, External |
Video Output | 1Vp-p Composite Output (75 ohms/BNC) |
Physical Specifications |
Dimension mm: 96 x 238 x 94 Weight g: 550 |
Environmental Specifications |
Operating Temperature oC: -30 ~ +60 Operating Humidity %: 20 ~ 80 |
