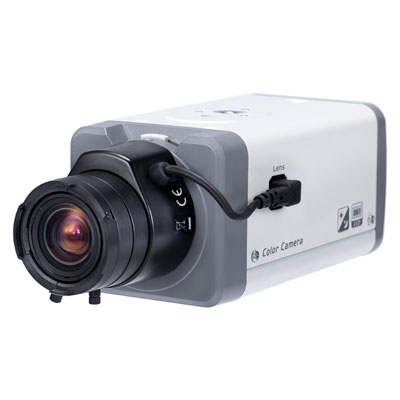

Dahua Technology DH-CA-F481EP-A 700 TVL Day/night Auto Iris Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-CA-F481EP-A
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 700
Read more
Additional info:

Dahua Technology DH-CA-F481EP-A is a 700 TVL day/night auto iris camera.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-CA-F481EP-A
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 700
Digital (DSP) Yes
Auto Iris Yes
Sensitivity lux 0.02
Lens Mount C/CS
Electrical Specifications Voltage: 24 V AC
Power Consumption: 6 W
Wide Dynamic Range Yes
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50s ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB >60
Synchronisation Internal, Line-lock
Zoom Yes
Video Output 1Vp-p Composite Output (75 ohm/BNC)
Physical Specifications Dimension mm: 65 x 131 x 60
Weight g: 500
Environmental Specifications Operating Temperature oC: -30 ~ +60
Operating Humidity %: 20 ~ 80
Additional info Dahua Technology DH-CA-F481EP-A is a 700 TVL day/night auto iris camera.
