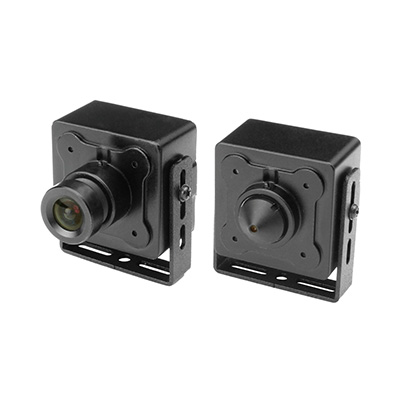

Dahua Technology CA-UM580BP Pinhole Camera
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Surveillance cameras |
| Model code | CA-UM580BP |
| Resolution TVL | 700 |
| Digital (DSP) | Yes |
| Sensitivity lux | 0.0001 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 2 W |
| Focal Length mm | 3.6 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 976 x 582 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| Electronic Shutter range | 1/50s ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | 60 |
| Synchronisation | Internal |
| Signal Mode | PAL |
| Video Output | 1Vp-p Composite Output |
| Physical Specifications |
Dimension mm: 30 x 20 x 30 Weight g: 50 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 20 ~ 80 |
| Additional info |
CA-UM580BP is pinhole camera featuring picture adjustment and privacy masking. |
