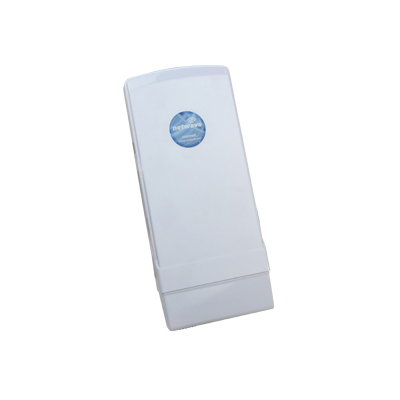

ComNet NW3 Point-to-multipoint Wireless Ethernet Link

Technical Specification

Features:
  • Make: ComNet
  • Model code: NW3
  • Bandwidth MHz: 10, 20, and 40
  • Dimensions mm: 121 x 64 x 280
  • Weight g: 500
Additional info:

ComNet NW3 point-to-multipoint wireless ethernet link can be configured through the embedded User Interface as a Client or as an Access Point. This point-to-multipoint model allows multiple Ethernet endpoints to be connected to a central Access Point. Up to 15 endpoints can be linked to a central access point. The NW3 supports up to 95Mbps throughput due to MIMO technology. An easy to read LED array displays unit operational status along with received signal strength ensuring optimal installation and operation.

Read more
Make ComNet
Manufacturer ComNet Europe Ltd.
Model code NW3
Bandwidth MHz 10, 20, and 40
Physical Specifications Dimensions mm: 121 x 64 x 280
Weight g: 500
Electrical Specifications Power Consumption: 350 mA
Voltage: 24 V DC
Environmental Specifications Operating Temperature oC: -10 ~ +65 C (14 ~ 149 F)
Operating Humidity %: 5 ~ 95
Additional info ComNet NW3 point-to-multipoint wireless ethernet link can be configured through the embedded User Interface as a Client or as an Access Point. This point-to-multipoint model allows multiple Ethernet endpoints to be connected to a central Access Point. Up to 15 endpoints can be linked to a central access point. The NW3 supports up to 95Mbps throughput due to MIMO technology. An easy to read LED array displays unit operational status along with received signal strength ensuring optimal installation and operation.
