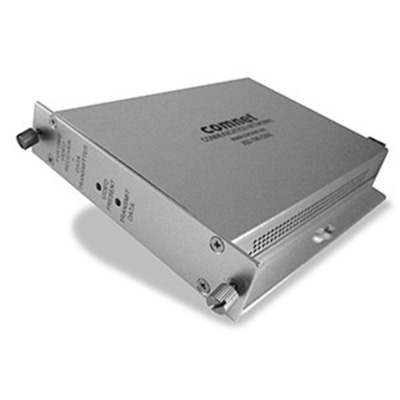

ComNet FVT15M2 Video And Data Transceiver
Technical Specification
Features:
- Make: ComNet
- Model code: FVT15M2
- Data Transceiver: Yes
- Transmitter Type: Yes
- Bandwidth MHz: 5 Hz - 10 MHz
Additional info:
ComNet FVT15M2 video and data transreciver supports RS232 or RS422 data interfaces. The bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters. The voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FVT15M2 |
| Data Transceiver | Yes |
| Transmitter Type | Yes |
| Bandwidth MHz | 5 Hz - 10 MHz |
| Physical Specifications |
Dimensions mm: 155 x 135 x 28 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Power Consumption: 250 mA Voltage: 8 ~ 15 V DC |
| Additional info | ComNet FVT15M2 video and data transreciver supports RS232 or RS422 data interfaces. The bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters. The voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events. |
