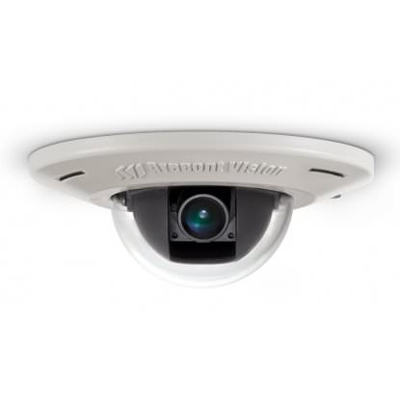

Arecont Vision AV5455DN 5-Megapixel Indoor/Outdoor IP Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Arecont Vision AV5455DN 5-Megapixel Indoor/Outdoor IP Dome Camera

Features:

Make: AV Costar
Previously known as: Arecont Vision
Model code: AV5455DN
Chip Inch Size: 1/3
Color Type: True Day / Night

Additional info:

Arecont Vision AV5455DN is a 5-megapixel indoor/outdoor IP dome camera. The camera is available in both recessed and surface mount configurations. The model comes equipped with a mechanical day/night switcher and pixel binning that delivers excellent low light capabilities.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AV Costar
Manufacturer	AV Costar (Arecont Vision)
Previously known as	Arecont Vision
Category	Video Surveillance>IP Dome cameras
Model code	AV5455DN
Chip Inch Size	1/3
Color Type	True Day / Night
Resolution TVL	5 MP
Megapixel	Yes
Sensitivity lux	0.15
Dome Type	PTZ
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Mount Type	Surface, Flush
Electrical Specifications	Voltage: PoE Power Consumption: 5.59 W
Focal length	4 mm
Compression	H.264 (MPEG-4, Part 10)/Motion JPEG
Back Light Compensation	Yes
White Balance	Yes
Network Properties	Interface: 100Base-T Ethernet Network Interface Network Protocols: RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP, DHCP Control: ePTZ Image Frame Rate: 14 fps
Physical Specifications	Dimensions mm: 100 x 79 Weight g: 300
Environmental Specifications	Operating Humidity %: 0 ~ 90 Protection: IP66, IK10
Additional info	Arecont Vision AV5455DN is a 5-megapixel indoor/outdoor IP dome camera. The camera is available in both recessed and surface mount configurations. The model comes equipped with a mechanical day/night switcher and pixel binning that delivers excellent low light capabilities.
