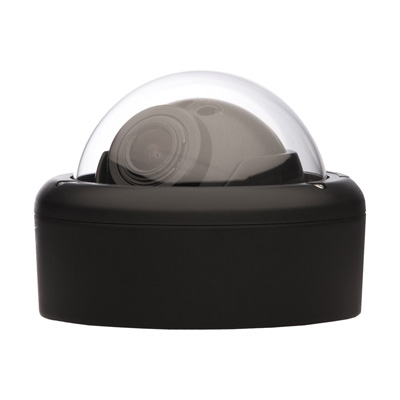

Arecont Vision AV2145DN-3310-D 1080p All-In-One IP Camera

Technical Specification

Features:
  • Make: Arecont Vision
  • Model code: AV2145DN-3310-D
  • Series: SurroundVideo Omni Series
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

AV2145DN-3310-D is All-In-One IP camera with 2.07 megapixel effective CMOS image sensor. It has 100Base-T ethernet network interface, flexible cropping and low-light noise filter control.

Read more
Make Arecont Vision
Manufacturer Arecont Vision
Model code AV2145DN-3310-D
Series SurroundVideo Omni Series
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 1920 x 1080
Specialist Type Megapixel
Sensitivity Lux 0.1
Auto Iris Yes
Lens Mount CS
Electrical Specifications Voltage: 12 VDC, 24 VAC
Power Consumption: 4.5 W
Motion Activated Yes
Focal Length mm 4
Mount Type Ceiling
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 31
Back Light Compensation Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 45
Zoom Yes
Compression Type H.264 (MPEG-4, Part 10) / Motion JPEG
Physical Specifications Weight g: 1020
Dimensions mm: 130 x 44
Environmental Specifications Operating Temperature oC: -5 ~ +60 C (23 ~ 140 F)
Operating Humidity %: 0 ~ 90
Additional info AV2145DN-3310-D is All-In-One IP camera with 2.07 megapixel effective CMOS image sensor. It has 100Base-T ethernet network interface, flexible cropping and low-light noise filter control.
