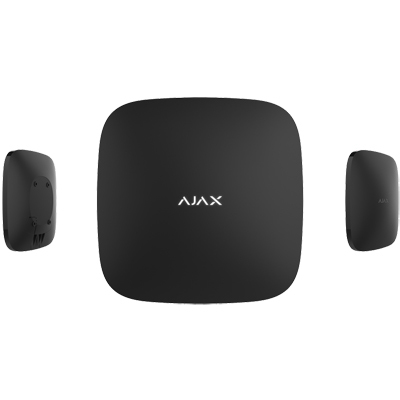

Ajax Hub Plus second-generation intelligent control panel

Technical Specification

Features:
  • Make: Ajax
  • Model code: Hub Plus
  • Control Panels & Accessories: Yes
  • Tamper: Yes
  • Dimensions mm: 163 x 163 x 36
Additional info:

Protects large areas The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the Hub and you can add 50 users and create 25 groups for room security management. For home and apartment For office For shop and cafeteria Uses all possible alarm transmission methods The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station. Alarms via calls, SMS and push notifications Synchronized operation of all communication channels Direct connection with central monitoring stations Increases stability by 4 times The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically. Improved reliability The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.

Read more
Make Ajax
Manufacturer Ajax Systems
Model code Hub Plus
Control Panels & Accessories Yes
Tamper Yes
Physical Specifications Dimensions mm: 163 x 163 x 36
Environmental Specifications Operating Temp oC: -10 ~ +40 C (14 ~ 104 F)
Additional info

Protects large areas

The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the Hub and you can add 50 users and create 25 groups for room security management.

  • For home and apartment
  • For office
  • For shop and cafeteria

Uses all possible alarm transmission methods

The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.

  • Alarms via calls, SMS and push notifications
  • Synchronized operation of all communication channels
  • Direct connection with central monitoring stations

Increases stability by 4 times

The Hub Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hub instantly switches between 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.

Improved reliability

The Hub Plus makes it possible to use redundant Internet connection by connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the backup — via Wi-Fi. If connection of one provider fails, the hub will stay connected and continue monitoring the situation at the site.
