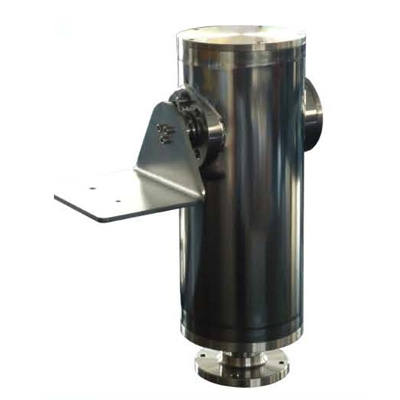

VSPT250HD Heavy Duty Stainless Steel Pan And Tilt Unit

Technical Specification

Features:
  • Make: Tecnovideo
  • Model code: VSPT250HD
  • Voltage: 24 VAC
  • Power Consumption: 80 W
  • Max Load kg: 50
Read more
Additional info:

VSPT250HD heavy duty AISI316L stainless steel pan and tilt unit. The VSPT250HD is a reliable solution to move extra-large size lenses and optics installed inside large camera housings. This unit is the perfect solution for harsh environments, such as Marine (offshore plants, harbours, boats, coastal surveillance, etc.) and in general wherever corrosive environmental conditions require corrosion-proof reliable equipment. It is designed to be the perfect companion for the 254 series extra-large camera housings.

Read more
Make Tecnovideo
Manufacturer Tecnovideo
Model code VSPT250HD
Electrical Specifications Voltage: 24 VAC
Power Consumption: 80 W
Max Load kg 50
Pan Speed o/ second 0 ~ 6
Tilt Speed o/ second 0 ~ 3
Physical Specifications Weight kg: 35
Environmental Specifications Operating Temperature oC: -20 ~ +55
Pan Angle o 360
Housing Material Stainless steel
Additional info

VSPT250HD heavy duty AISI316L stainless steel pan and tilt unit. The VSPT250HD is a reliable solution to move extra-large size lenses and optics installed inside large camera housings. This unit is the perfect solution for harsh environments, such as Marine (offshore plants, harbours, boats, coastal surveillance, etc.) and in general wherever corrosive environmental conditions require corrosion-proof reliable equipment. It is designed to be the perfect companion for the 254 series extra-large camera housings.
