AMG Systems has been commissioned to help digitise the traffic monitoring system for newly-extended hard shoulder bus lanes on Belfast’s main motorways, to make it more efficient, secure and reliable. A new IP-based CCTV system was being installed as part of the extension project, so the underlying fiber network needed to be upgraded in order to handle the high-grade images being transmitted back to the city’s Traffic Information and Control Center (TICC). The upgrade helps to enhance passenger journeys by improving the quality of real-time information sent to traffic management teams.
AMG – Juniper Networks partnership
AMG, working with Juniper Networks, a leader in secure, AI-driven networks, brought the IP-driven CCTV project together across numerous government agencies and private construction contractors to create a cost-efficient, robust solution for Belfast’s M1 and M2 motorways.
The Northern Ireland Department for Infrastructure (DfI) awarded a tender to Graham Construction to work on the extension of hard shoulder bus lanes along the M1 and M2 motorways, intended to improve journey times and service reliability for bus passengers without affecting general traffic flows. The scheme was designed by DfI consultants Aecom, who also carried out site supervision and project manager roles during construction. The work included the provision of new and upgraded Pan Tilt Zoom IP-based CCTV cameras for traffic monitoring purposes by the Traffic Information and Control Center (TICC) in Belfast.

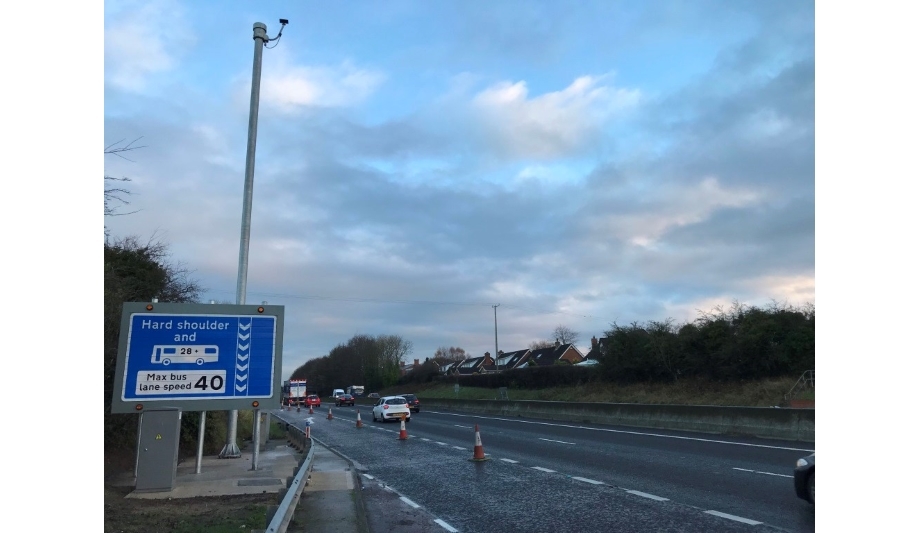

Hikvision PTZ IP video camerasGraham used Hikvision PTZ IP video cameras – installed by Chubb – for traffic monitoring
Graham used Hikvision PTZ IP video cameras – installed by Chubb – for traffic monitoring. But connecting them to the Pelco system in use at TICC was not as straightforward as it at first seemed, which is where AMG Systems and Juniper Networks came in.
“On each of the two motorways, the existing fiber network had only two spare fibres, so all the images had to be combined onto the two, allowing for a resilient ring,” consultant Jo Hopkins of Highways Consulting says, “meaning that if one fiber broke, the other would be able to transmit all the images. The existing cameras on the network were analog, but we took the opportunity to install digital cameras. This reduces the number of times the images are sampled and converted from analog to digital and back again, which improves the quality of the image.”
Connecting IP cameras to Fiber Network
Hopkins worked with Graham on the project, and said AMG was asked to provide a reliable, cost-effective means of connecting new cameras onto the existing fiber network, bringing the images back to the Traffic Control Center in Belfast. “The task itself was straightforward, but the integration into an existing live system made the project more complex,” she said.
Hopkins and AMG Systems Business Development Director Sara Fisher worked to address the network challenge, which included upgrading from analog to IP cameras for the first time on the Belfast motorways.
AMG switches
The network design utilizes nine AMG switches on the M1 fibres and 15 switches for the M2
The network design utilizes nine AMG switches on the M1 fibers and 15 switches for the M2. At the TICC control room, there are a further four AMG switches which allow the IP cameras to connect to the existing Pelco monitoring equipment.
Fisher explains that the control room network connection was further complicated as the TICC’s existing system called for the use of multi-casting and VLANs, and an existing firewall also had to be factored in. “The most appropriate interface in this case was Layer 3 POE switches from our partner Juniper Networks,” she said.
IP video surveillance
A DfI TICC representative said: “The joint network design by AMG and Juniper Networks has met the challenge presented to them in upgrading our hard shoulder bus lane cameras from purely analog to IP and has provided a resilient network, intended specifically for the task. AMG’s post-sales service and advice has also proved extremely helpful.”
