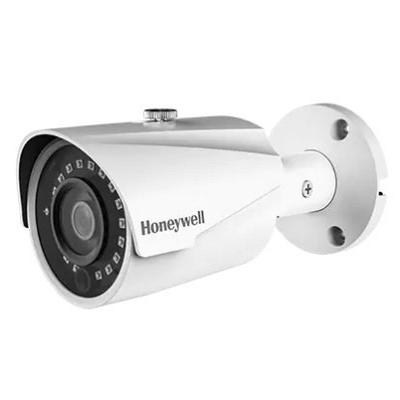

Honeywell Security HBW4PER2 4MP WDR IR IP MFZ Bullet Camera

Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: HBW4PER2
  • Series: Performance Series
  • Chip Inch Size: 1/3
  • Color Type: True Day / Night
Read more
Additional info:

1/3” 4 MP progressive scan imager 2688 x 1520 resolution 3.7 - 13.5 mm MFZ lens True day/night (IR-cut filter) Wide Dynamic Range up to 120 dB Low-light performance down to 0.03 lux (color) or 0 lux with IR LEDs on Up to 164 ft (50 m) IR illumination, depending on scene reflectance H.265 Smart Codec

Read more
Make Honeywell Security
Manufacturer Honeywell
Model code HBW4PER2
Series Performance Series
Chip Inch Size 1/3
Color Type True Day / Night
Resolution 4MP
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0 ~ 0.03
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, POE
Power Consumption: 11.7 W
Focal Length mm 2.7 ~ 13.5mm
Wide Dynamic Range Yes
Picture Elements HxV 2688 x 1520
Network Properties Image Frame Rate: 25 ~ 30 fps
Interface: RJ-45 (10/100BASE-T)
Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3(4) ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB 45
Signal Mode NTSC, PAL
Compression Type H.265/H.264H/Smart Codec/MJPEG (Sub Stream)
Physical Specifications Dimensions mm: 215 x 90
Weight g: 685
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ 60 C (-22 ~ 140 F)
Operating Humidity %: 0 ~ 95
System Requirements Operating System: Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit
Web Browser: Internet Explorer (11.0+)
HD Yes
Additional info
  • 1/3” 4 MP progressive scan imager
  • 2688 x 1520 resolution
  • 3.7 - 13.5 mm MFZ lens
  • True day/night (IR-cut filter)
  • Wide Dynamic Range up to 120 dB
  • Low-light performance down to 0.03 lux (color) or 0 lux with IR LEDs on
  • Up to 164 ft (50 m) IR illumination, depending on scene reflectance
  • H.265 Smart Codec
Download PDF version Download PDF version
