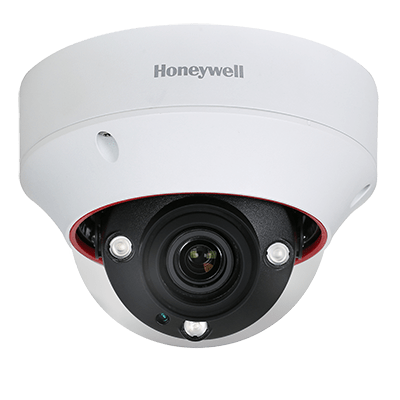

Honeywell Security H4L6GR2 6MP DWDR IR Low Light IP Rugged Dome H.265

Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: H4L6GR2
  • Chip Inch Size: 1/2
  • Color Type: Color / Monochrome
  • Resolution TVL: 6MP
Read more
Additional info:

1/1.8" 6MP progressive scan imager Embedded Analytics: Face detection, Audio detection, Video tampering, Motion detection, Scene change, People counting Advanced Analytics: ADPRO Intrusion Trace, ADPRO Loiter Trace analytics, additional Xtralis license application required Ultra-low light performance 50 m (164') IR distance, depending on scene reflectance Digital WDR Excellent low light performance with down to 0 lux BW (with IR LEDs on) Up to triple stream support Up to 6 MP resolution at 1- 25/30 fps 4.1-16.4mm F1.53 Motorized focus and zoom lens (107°-35° angle view) Rugged outdoor housing with IP67 ingress protection rating and IK10 vandal resistance rating Corridor mode viewing capability On board camera storage: up to 128 GB micro SD card (not included) ONVIF profile S, G and Q compliant

Read more
Make Honeywell Security
Manufacturer Honeywell
Model code H4L6GR2
Chip Inch Size 1/2
Color Type Color / Monochrome
Resolution TVL 6MP
HD Yes
Megapixel Yes
Sensitivity lux 0 ~ 0.004
Indoor/Outdoor Outdoor
Mount Type Pendant, Pole, Corner
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE+
Power Consumption: 18 W
Focal length 4.1 ~ 16.4 mm
Compression H.265/H.264/MJPEG; Bit rate control (CBR and VBR)
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/30 ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB 50
Signal Mode PAL, NTSC
Network Properties Network Protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF
Image Frame Rate: 25 ~ 30 fps
Physical Specifications Dimensions mm: 159 x 118
Weight g: 1200
Environmental Specifications Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: 0 ~ 95
Protection: IP67, IK10
System Requirments Operating System: Windows® 7 32-bit/64-bit
Web Browser: Internet Explorer® (11.0+), Firefox, Chrome, Safari
Additional info
  • 1/1.8" 6MP progressive scan imager
  • Embedded Analytics: Face detection, Audio detection, Video tampering, Motion detection, Scene change, People counting
  • Advanced Analytics: ADPRO Intrusion Trace, ADPRO Loiter Trace analytics, additional Xtralis license application required
  • Ultra-low light performance
  • 50 m (164') IR distance, depending on scene reflectance
  • Digital WDR
  • Excellent low light performance with down to 0 lux BW (with IR LEDs on)
  • Up to triple stream support
  • Up to 6 MP resolution at 1- 25/30 fps
  • 4.1-16.4mm F1.53 Motorized focus and zoom lens (107°-35° angle view)
  • Rugged outdoor housing with IP67 ingress protection rating and IK10 vandal resistance rating
  • Corridor mode viewing capability
  • On board camera storage: up to 128 GB micro SD card (not included)
  • ONVIF profile S, G and Q compliant
