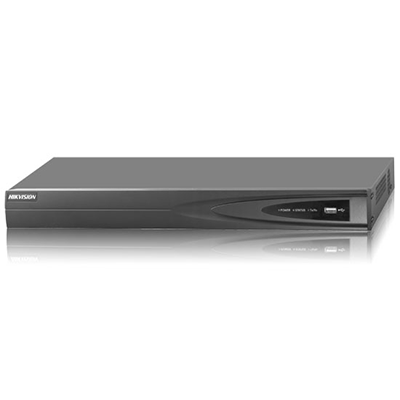

Hikvision DS-7616NI-SE(/N) 16-channel Network Video Recorder

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-7616NI-SE(/N)
  • Recording Mode: Real Time / Timelapse / Event
  • Video inputs: 16
  • Hardware solution: Yes
Read more
Additional info:

Third-party network cameras supported Up to 5 Megapixels resolution recording HDMI and VGA output at up to 1920×1080P resolution 8 independent PoE network interfaces HDD quota and group management

Read more
Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-7616NI-SE(/N)
Recording Mode Real Time / Timelapse / Event
Video inputs 16
Hardware solution Yes
Type of multiplexer functions Recording, Playback, Viewing, Network Configuration
Recording system HDD
Storage capacity 4 TB
Secondary storage USB
Resolution 1920 × 1080
Alarm Handling 4 in, 1 out
Audio recording properties RCA (2.0 Vp-p, 1kohm)
Multiple client support Yes
Voltage 12 V DC
Power consumption (W) <10
Weight (kg) <2
Dimensions (mm) 445 x 290 x 45
Operating temperature (°C) -10 ~ +55 C (14 ~ 131 F)
Operating humidity (%) 10 ~ 90
Additional info
  • Third-party network cameras supported
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • 8 independent PoE network interfaces
  • HDD quota and group management
