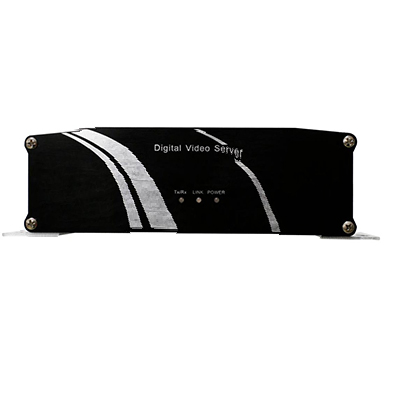

Hikvision DS-6601HFI 1-channel Encoder With H.264 Video Compression

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-6601HFI
  • Video Inputs: 1
  • Audio Input: Yes
  • Alarm Input: Yes
Read more
Additional info:

H.264 video compression 4CIF resolution real-time recording Dual-stream Multiple PTZ protocols  SADP(IP Finder), UDP, RTP and RTSP protocols

Read more
Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-6601HFI
Video Inputs 1
Audio Input Yes
Alarm Input Yes
Network Protocols SADP (IP finder), UDP, RTP and RTSP
Interface 1 RJ-45 10 M / 100 M /1000 Mbps adaptive Ethernet interface
Resolution TVL 4CIF
Image per second (IPS) 25 fps / 30 fps
Physical Specifications Dimensions mm: 201 × 136 × 42
Weight g: <2000
Electrical Specifications Power Consumption: 8 W
Voltage: 12 V DC
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (-14 ~ +131 F)
Operating Humidity %: 10 ~ 90
Additional info
  • H.264 video compression
  • 4CIF resolution real-time recording
  • Dual-stream
  • Multiple PTZ protocols
  • SADP(IP Finder), UDP, RTP and RTSP protocols
