Hikvision Enhances Unified Smart Switch And Security Device Management With Hik-Partner Pro Mobile App

Technical Specification

This product model is not available in this region

Hikvision Enhances Unified Smart Switch And Security Device Management With Hik-Partner Pro Mobile App

Features:

Make: Hikvision

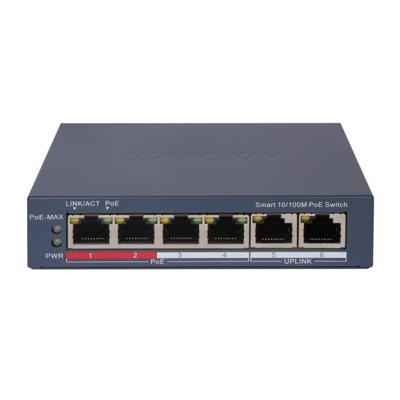

Model code: DS-3E1106P-EI
Switcher Type: IP
POE: Yes
Video inputs / ports: 4

Additional info:

4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port Total PoE Power Budget 60W Support 802.1Q VLAN Support PoE watchdog to detect and restart the cameras that do not respond Support STP/RSTP Loop prevention Support cable detection to locate failure Up to 300 m Long Range PoE Transmission 6KV Surge Protection

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>Switchers & Switches
Model code	DS-3E1106P-EI
Switcher Type	IP
POE	Yes
Video inputs / ports	4
Physical Specifications	Dimensions mm: 121.1 x 27.6 x 83.1 Weight g: 770
Electrical Specifications	Voltage: 54 V DC Power Consumption: 65 W
Environmental Specifications	Operating Temperature ^oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 5 ~ 95
Additional info	4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port Total PoE Power Budget 60W Support 802.1Q VLAN Support PoE watchdog to detect and restart the cameras that do not respond Support STP/RSTP Loop prevention Support cable detection to locate failure Up to 300 m Long Range PoE Transmission 6KV Surge Protection
