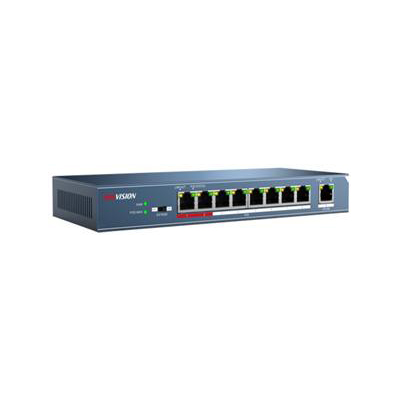

Hikvision DS-3E0109P-E 8-ports 100Mbps Unmanaged PoE Switch

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-3E0109P-E
  • Switcher Type: IP
  • POE: Yes
  • Video inputs / ports: 8
Read more
Additional info:

DS-3E0109P-E is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones.

Read more
Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-3E0109P-E
Switcher Type IP
POE Yes
Video inputs / ports 8
Physical Specifications Dimensions mm: 235 x 103 x 27
Weight g: 570
Electrical Specifications Voltage: 51 V DC
Power Consumption: < 127 W
Environmental Specifications Operating Temperature oC: 0 ~ 40 C (32 ~ 104 F)
Operating Humidity %: 10 ~ 90
Additional info

DS-3E0109P-E is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones.

Download PDF version Download PDF version
