Axis Communications AXIS T91B67 Pole Mount

Technical Specification

Features:

Make: Axis Communications
Model code: AXIS T91B67 Pole Mount
Type of Mount: Camera Mounts
Mount Position: Pole
Max Load kg: 15

Additional info:

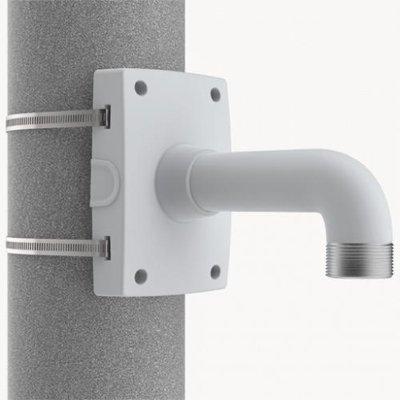

The outdoor-ready AXIS T91B67 Pole Mount has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS T91B67 is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Axis Communications
Manufacturer	Axis Communications
Category	Video Surveillance>Security camera mounts
Model code	AXIS T91B67 Pole Mount
Type of Mount	Camera Mounts
Mount Position	Pole
Max Load kg	15
Physical Specifications	Dimensions mm: 252 x 134 x 194 mm Weight g: 1200
Additional info	The outdoor-ready AXIS T91B67 Pole Mount has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS T91B67 is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.
