Avigilon 3.0C-H4VI-RO1-IR Intercom System Specifications

Avigilon H4 Video Intercom

Product Profile

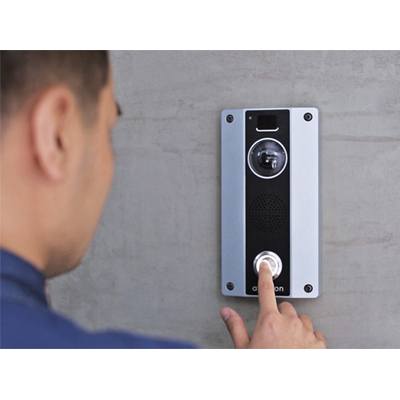

The H4 Video Intercom integrates a 3 MP camera with a high-performance intercom and features exceptional wide dynamic range, low-light, noise reduction and echo-cancelling technologies for clear viewing and two-way communication with visitors.

Combined with Avigilon Control Center (ACC) video management software, this secured entry system enables operators to quickly and easily identify and communicate with a visitor before remotely granting access.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Avigilon
Manufacturer	Avigilon Corporation
Category	Access Control>Intercom Systems
Model code	3.0C-H4VI-RO1-IR
Type of Kit/ System	Video & Audio
Vandal Resistant	Yes
Mount Type	Surface Mount
No of Call Buttons on Panel	1
Panel Material	Aluminum; Bubble: Polycarbonate
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IK09, IK10
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 10W
Physical Specifications	Dimensions mm: 227 x 120 x 100 Weight g: 1230
Additional info	3 MP 170 degree wide-angle fisheye lens offers extended field of view to clearly capture individuals of different heights. Provides high quality clear bi-directional communication using noise reduction and echo-cancellation. Weather-, vandal-, and tamper-resistant, aluminum housing together with physical tamper detection offers reliable strength and durability. LightCatcher technology provides exceptional image quality in low-light environments. Triple exposure Wide Dynamic Range for complex lighting environments. Integrated IR LEDs provide uniform illumination in the dark, even at 0 lux. Input and outputs for remote control of door locks and other equipment. Avigilon Appearance Search technology for fast video search across all cameras. Single network connection for video and audio using PoE. Easy door grant access via ACC™ and ACM™ integration. HDSM SmartCodec technology reduces bandwidth and storage requirements.
Download PDF version Download PDF version

Make

Avigilon

Manufacturer

Avigilon Corporation

Category

Access Control>Intercom Systems

Model code

3.0C-H4VI-RO1-IR

Type of Kit/ System

Video & Audio

Vandal Resistant

Yes

Mount Type

Surface Mount

No of Call Buttons on Panel

Panel Material

Aluminum; Bubble: Polycarbonate

Environmental Specifications

Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: 0 ~ 95
Protection: IK09, IK10

Electrical Specifications

Voltage: 12 V DC, PoE
Power Consumption: 10W

Physical Specifications

Dimensions mm: 227 x 120 x 100
Weight g: 1230

Additional info

3 MP 170 degree wide-angle fisheye lens offers extended field of view to clearly capture individuals of different heights.
Provides high quality clear bi-directional communication using noise reduction and echo-cancellation.
Weather-, vandal-, and tamper-resistant, aluminum housing together with physical tamper detection offers reliable strength and durability.
LightCatcher technology provides exceptional image quality in low-light environments.
Triple exposure Wide Dynamic Range for complex lighting environments.
Integrated IR LEDs provide uniform illumination in the dark, even at 0 lux.
Input and outputs for remote control of door locks and other equipment.
Avigilon Appearance Search technology for fast video search across all cameras.
Single network connection for video and audio using PoE.
Easy door grant access via ACC™ and ACM™ integration.
HDSM SmartCodec technology reduces bandwidth and storage requirements.
