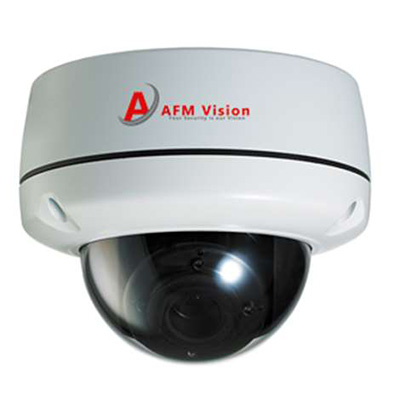

AFMVision AFM-VDA101SM2Ti 2 Megapixel IR Vandal Proof Dome IP Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

AFMVision AFM-VDA101SM2Ti 2 Megapixel IR Vandal Proof Dome IP Camera

Features:

Make: AFMVision
Model code: AFM-VDA101SM2Ti
Series: K-Series
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

2 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality (Exmor) 3~10.5mm Smart Focus Lens 20M IR Beam Distance (4 Built-in High Power LED’s) Multi Streaming of H.264 and MJPEG Supports image resolution up to 1920x1080 (FHD) Full HD (1920x1080:1080p) Max. 30fps Supports CBR and CVBR modes Controllable frame rate Privacy Masking up to 8 areas Supports WDR, Defog, 2D+3DNR, Smart IR Digital PTZ 12VDC/ IEEE802.3af POE Conformant with ONVIF (Profile-S) Includes Windows based IP Installer and license-free 16 channel NVR(Network Video Recorder) software

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AFMVision
Manufacturer	AFMVision UK Technologies Ltd.
Category	Video Surveillance>IP Dome cameras
Model code	AFM-VDA101SM2Ti
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Megapixel	Yes
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 7 W
Focal length	3.6 ~ 10.5 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	> 50
Video Output	CVBS : 1.0 Vp-p / 75 ohms composite
Network Properties	Network Protocols: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 153 x 122 Weight g: 1,000
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 C (14 ~ 122 F)
Additional info	2 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality (Exmor) 3~10.5mm Smart Focus Lens 20M IR Beam Distance (4 Built-in High Power LED’s) Multi Streaming of H.264 and MJPEG Supports image resolution up to 1920x1080 (FHD) Full HD (1920x1080:1080p) Max. 30fps Supports CBR and CVBR modes Controllable frame rate Privacy Masking up to 8 areas Supports WDR, Defog, 2D+3DNR, Smart IR Digital PTZ 12VDC/ IEEE802.3af POE Conformant with ONVIF (Profile-S) Includes Windows based IP Installer and license-free 16 channel NVR(Network Video Recorder) software
