ComNet Security devices

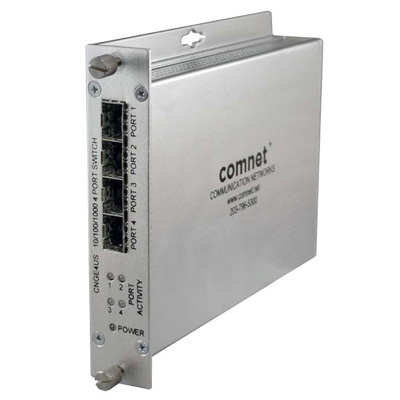

The ComNet™ CNGE4US Ethernet 4 port unmanaged switches are designed to transmit and receive 10/100/1000 Mbps data using small form factor pluggable modules. Both are environmentally hardened to operate in demanding environments.LED indicators are provided for confirming equipment operating status. Plug-and-play design ensures ease of installation requiring no optical adjustments. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

NWAVBSA1 is a dual polarisation variable beamwidth sector antenna for NetWave wireless Ethernet devices.

The ComNet™ CNFE6+2USPOE provides 8 Ethernet ports operating at 10/100Mbps and is designed to combine six electrical ports into a second optical port that forwards this data to the next CNFE6+2USPOE. The optical ports are designed to forward the data from the six electrical ports to the next switch, to a PC, or another Ethernet connection. In addition, the electrical ports can supply up to thirty (30) watts of power (“Power Over Ethernet”) to remote Ethernet devices.

ComNet CWFE1POCOAXBM supports 100Mbps Ethernet transmission as well as Power over Ethernet (PoE) over standard 75 ohm coaxial cable circuits, at data rates of up to 100 Mbps, and transmission distances of up to 230 meters. CWFE1POCOAXBM is installed at the powered device (PD) in the field location. LED indicators are provided for rapidly ascertaining the operating status of the device.

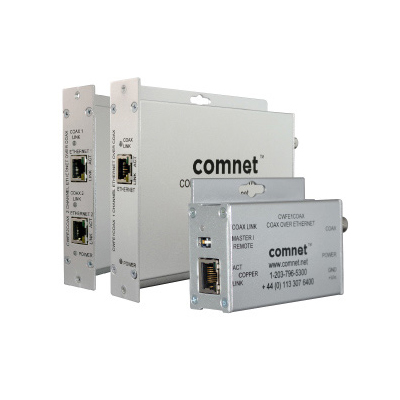

ComNet CWFE1COAXM single channel ethernet over coax supports high-speed Ethernet transmission over standard 75 ohm coaxial cable circuits, at data rates of 100 Mbps, and transmission distances of up to 305 meters. It is a small sized unit.

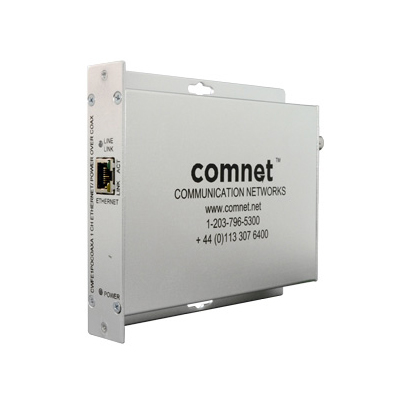

ComNet CWFE1POCOAXA ethernet over coaxial cable with power transports Ethernet and camera/device operating power between the remote device and head-end location using existing 75 ohms coaxial cable. It eliminates the need to have a separate power source at the remote location and provides operating power for the remote ComNet media converter and PoE device.

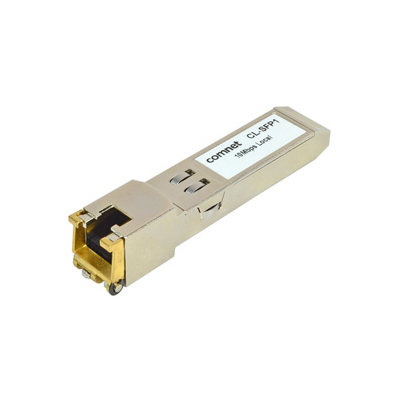

ComNet CL-SFP s a small form-factor pluggable Ethernet extender module that improves bandwidth and distance of existing copper networks. It helps avoid installation costs of new fiber lines on site by allowing full 100Mbps Ethernet bandwidth to be extended over 2-wire twisted pair or coaxial cable.

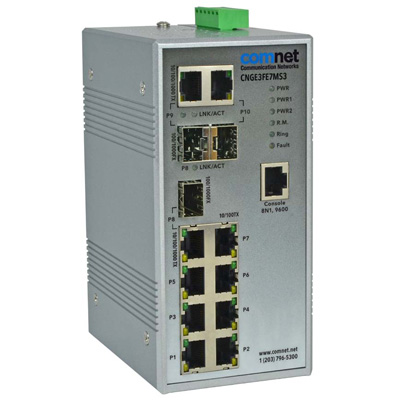

The ComNet™ CNGE3FE7MS3 Managed Ethernet Switch provides robust transmission of seven (7) 10/100BASE-T(X) and three (3) 10/100/1000T(X) or 100/1000FX combo ports, of gigabit Ethernet data. It is available for use with either conventional CAT-5e copper or optical transmission media. The 7 electrical ports support the 10/100Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation.

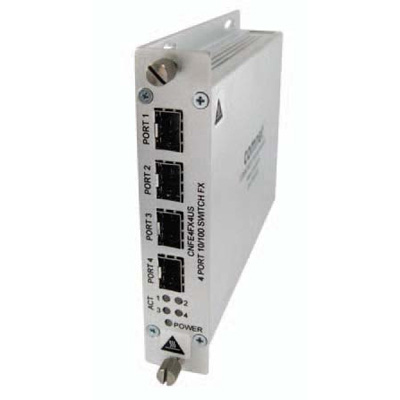

The ComNet™ CNFE4US Ethernet 4 port unmanaged switch Series is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates 4 independent 10/100 Mbps channels in a single package.

The ComNet™ CNFE4US Ethernet 4 port unmanaged switch Series is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates 4 independent 10/100 Mbps channels in a single package.

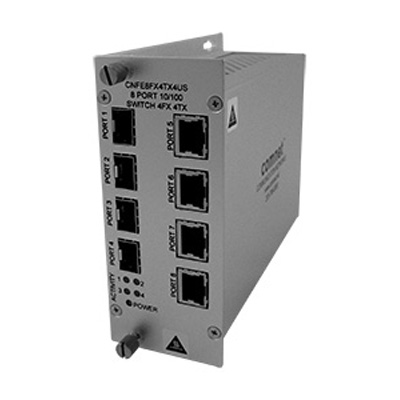

The ComNet™ CNFE8US Series Ethernet 8 port unmanaged switches are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5e/6 electrical cable. Eight independent 10/100 Mbps channels are integrated in a single package.

The ComNet™ CNFE4+1SMSM2 is a five-port self-managed Ethernet switch with uplink management functionality. It provides 4 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a single optical port and forward that data to the next network device, using two-fiber ST or SC optical connectors.

The ComNet™ CNFE8US Series Ethernet 8 port unmanaged switches are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5e/6 electrical cable. Eight independent 10/100 Mbps channels are integrated in a single package.

The ComNet™ CNFE4+1SMSM2 is a five-port self-managed Ethernet switch with uplink management functionality. It provides 4 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a single optical port and forward that data to the next network device, using two-fiber ST or SC optical connectors.

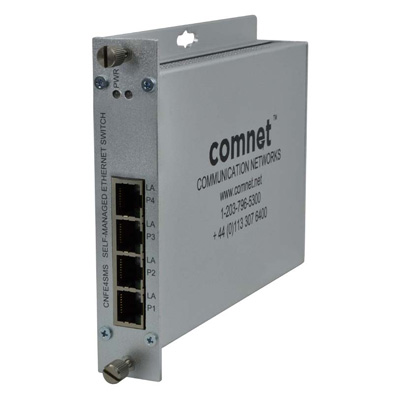

The ComNet™ CNFE4SMS is a four-port switch with uplink management functionality and provides 4 Ethernet ports operating at 10/100 Mbps and is designed to combine three electrical ports into an electrical port that forwards this data to the next network device, There is no programming required to use this product. The ComNet CNFE4SMS comes pre-programmed, preventing network video flooding with DIP switch selection of port 4 as uplink or as an unmanaged switch.

The ComNet™ CNFE5SMS is a five-port self-managed Ethernet switch with uplink management functionality. It provides 5 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a fifth electrical port and forward that data to the next network device. There is no programming required to use this switch. The ComNet CNFE5SMS comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch. It is “Plug-and-Play” easy to use.

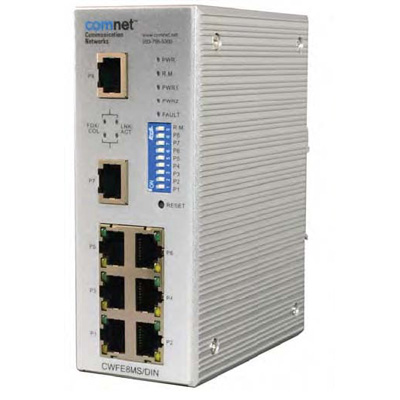

The ComWorx™ CWFE8MS/DIN Managed Ethernet Switch provides transmission of 10/100 BASE-T Ethernet data. These units are available for use with conventional CAT-5e copper transmission media. Up to 8 electrical ports for easily implementing point-to-point, linear adddrop, drop-and-repeat, star or true self-healing ring and mesh network system architectures.

The ComNet™ CNFE8US Series Ethernet 8 port unmanaged switches are designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5e/6 electrical cable. Eight independent 10/100 Mbps channels are integrated in a single package.

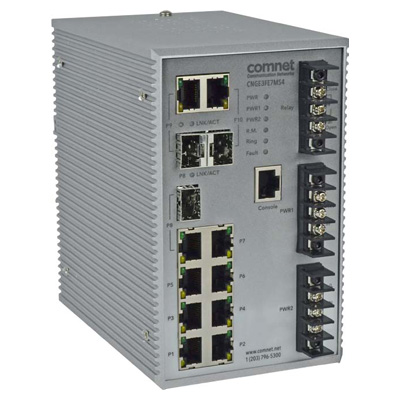

The ComNet™ CNGE3FE7MS4 is a substation-rated and industrially hardened fully managed layer 2 gigabit Ethernet switch. Fully compliant with the requirements of IEC 61850-3, IEEE 1613 Class 2, UL 508 Class 1/ Division 2 (Groups A, B, C, & D for hazardous environments), EN50155, and NEMA TS-1/ TS-2, it is designed for deployment in environments where high levels of electromagnetic noise and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility substations and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and other difficult out-of-plant applications.

The ComNet™ CNFE4US Ethernet 4 port unmanaged switch Series is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP options or 10/100 Mbps data over CAT5E/6 electrical cable. This unit integrates 4 independent 10/100 Mbps channels in a single package.

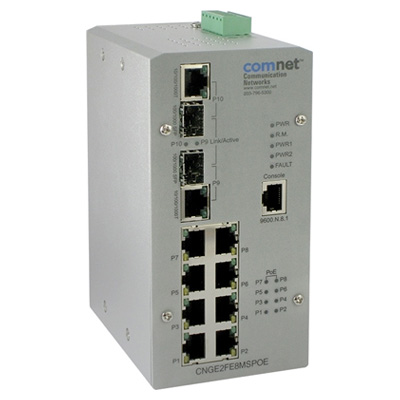

The ComNet™ CNGE2FE8MSPOE Managed Ethernet Switch provides eight (8)10/100 BASE-TX ports and two (2) 10/100/1000TX or 100/1000FX combo ports. The CNGE2FE8MSPOE is environmentally hardened and designed for use in difficult environments, and is available for use with CAT-5e copper or optical transmission media. The 8 electrical ports support the 10/100 Mbps IEEE 802.3 protocol.

The ComNet™ CWGE26FX2TX24MSPOE is an extended temperature commercial grade Managed Ethernet Switch. It provides IEEE 802.3at PoE to twenty-four10/100/1000BASE-T(X) two of which are also gigabit combo ports supporting 100/1000Fx SFP Modules. A further two-100/1000FX SFP* ports are also included.

ComNet CKFE1COAX ethernet-over-coax extender consists of a pair of CLFE1COAX which support one channel of 100Mbps Ethernet as well as Pass-through Power over Ethernet (PoE) over standard 75Ω coaxial cable. The unit supports transmission distances of up to 5,000 feet (1524m) at 10 Mbps, or 1800 feet (548m) at 100 Mbps.

The ComNet™ CNGE2FE8MSPOE2 is a hardened Managed Ethernet Switch.It provides IEEE 802.3af (15W) PoE to eight 10/100BASE-T(X) ports and has two-gigabit combination SFP or RJ-45 ports. Up to 120 watts of PoE power is available for distribution across all 8 TX ports. All SFP ports utilize ComNet SFP* modules for fiber and connector type and distance. The CNGE2FE8MSPOE2 is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over 250 units of connection), ComRing, and MSTP/RSTP/ STP (IEEE 802.1 s/w/D).

ComNet CNFE1EOC-M mini modem supports Ethernet over twisted pair or coaxial cable, at data rates of up to 90 Mbps. Ethernet data may be transmitted over a telephone-grade twisted copper pair, legacy serial cabling, or standard 75 ohm coaxial cable circuits, making this unit ideal for those applications where it is desired to utilize an existing installed base of copper wiring for Ethernet transmission.

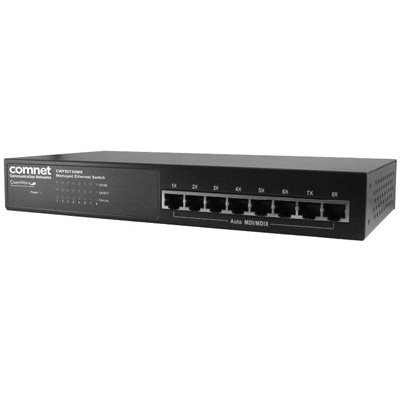

The ComWorx CWFE8TX8MS Managed Ethernet Switch provides transmission of 100 BASE-TX Ethernet data. These units are available for use with conventional CAT-5e copper transmission media. Up to 8 electrical ports are available for easily implementing point-to-point, linear add-drop, drop-and-repeat, star or true selfhealing ring and mesh network system architectures. The electrical ports support the 10/100 Mbps (100 BASE-TX) Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation.

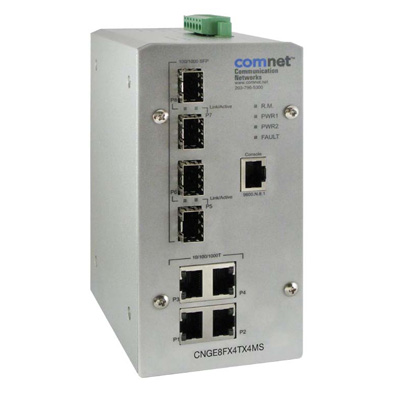

The ComNet™ CNGE8FX4TX4MS Managed Ethernet Switch provides transmission of (4) 100/1000 BASE-TX and (4) 10/100/1000FX combo ports. Unlike most Ethernet switches, these environmentally hardened units are designed for deployment in difficult operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Ports 1 – 4 support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation.
