Axis Communications Security cameras

Flexible flat-faced dome for indoor surveillance Eyeball design for optimized installation flexibility Built-in IR for video in complete darkness Forensic WDR Corridor format for vertically oriented coverage areas

AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing. AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.

The AXIS P3364-VE is a 1-megapixel day and night fixed dome network camera that offers superb video performance. It delivers 30 fps in all resolutions up to HDTV 720p/1MP. The camera also supports digital pan/tilt/zoom, allowing a view area cropped from the full view to be streamed for viewing or recording. This can be used to minimize the bit rate and storage needs by optimizing the fixed viewing angle after installation, or by allowing pan, tilt and digital zoom in the view.

AXIS Q1765-LE is a slim, bullet-style, outdoor-ready network camera with 18x optical zoom and auto-focus, providing both wide overviews and detailed images for identification purposes at long distances. It delivers HDTV 1080p video in multiple, individually configurable H.264 and Motion JPEG video streams. The built-in IR illumination is provided by four highly power-efficient, auto-adjusting LEDs. AXIS Q1765-LE supports wide dynamic range (WDR) an Axis’ unique Corridor Format, allowing effective monitoring with higher resolution in vertical scenes. The compact, light-weight camera is IP66-rated and features Axis’ Arctic Temperature Control for powering up at very low temperatures following a power failure.

Scalable and powerful solution Flexible storage options including RAID Available in 3 variants- 16 TB, 32 TB 32 AXIS Camera Station licenses included Extensive support and 5-year warranty

Scalable and powerful solution Flexible storage options including RAID Available in 3 variants- 16 TB, 32 TB 32 AXIS Camera Station licenses included Extensive support and 5-year warranty

Scalable and powerful solution Flexible storage options including RAID Available in 3 variants- 24 TB, 64 TB, or 144 TB 64 AXIS Camera Station licenses included Extensive support and 5-year warranty

AXIS 209FD/209MFD are fixed dome network cameras designed for discreet indoor video surveillance.  The non-invasive design makes AXIS 209FD/209MFD the perfect choice for locations such as shops, hotel receptions and corridors.

Easy and discreet installation Sensor unit rotates and tilts to the desired viewing direction HDTV 720p and 102° horizontal field of view Axis Zipstream technology Built-in microSD card slot

Flexible storage options including RAID Optimized for Axis network products Quick system setup and intuitive operation Extensive support available AXIS Camera Station licenses included

*SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.

AXIS Q8414-LVS offers a vandal-resistant stainless steel casing and built-in invisible IR LED illumination for high quality indoor video surveillance even in complete darkness. It supports Lightfinder making it extremely sensitive to low light. The water-resistant casing is easy and safe to clean with a water hose, soapy water or other multi-purpose cleaning agent. It supports both IP66- and NEMA 4X-rating. The corner-mount camera has no ligature points and is ideal for video surveillance of small rooms in premises such as correctional facilities, interview rooms and elevators. AXIS Q8414-LVS features audio analytics that can be used to trigger an alarm.

All-in-one solution with integrated PoE switch Flexible storage options including RAID Ease of installation Validated with extensive support AXIS Camera Station licenses included

HDTV-quality video surveillance in vehicles AXIS M3114-R Network Camera is specially designed for mobile video surveillance in buses, trains, subway cars and emergency vehicles. Vibration resistance and tampering alarm The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The active tampering alarm can detect tampering attempts such as blocking or spray-painting. Watch the AXIS M3114-R network camera in action   Clear images AXIS M3114-R has support for HDTV 720p streaming at full frame rate. The camera is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained. The use of progressive scan also produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements. Quick and reliable installation  The camera is designed for quick and reliable installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor.Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.GovSec Award in the IP Video categoryAXIS M3114-R won the magazine Security Products' GovSec Award in the IP Video category for an outstanding product being exhibited at GovSec, the Government Security Expo & Conference 2010.Key features: Flat, rugged design Progressive scan and megapixel/HDTV Multiple H.264 and Motion JPEG streams Quick and reliable installation Active tampering alarm

AXIS P3905-R is specially designed for HDTV 1080p video surveillance in or on buses, trains, subway cars and emergency vehicles. The compact, rugged and discreet camera has IP67-rated protection against dust and water, and can withstand tough conditions such as vibrations, shocks and temperature fluctuations. The active tampering alarm detects tampering attempts, such as blocking or spray-painting.

The easy-to-install AXIS P5514-E is a compact, affordably priced pan/tilt/zoom camera suitable for surveillance of areas such as hospitals, schools, parking lots and perimeters. AXIS P5514-E enables users to pan 360° for overview surveillance and zoom 12x with autofocus for detailed views. The camera provides up to 720p (1080x720) resolution at 50/60 fps frame rate, and offers H.264 and Motion JPEG streams.

The bullet-style AXIS P1428-E provides excellent image quality in 8 megapixel resolution. The high resolution enables the camera to cover a large area in exceptional detail for high quality identification. The camera features a varifocal P-iris lens. P-iris control provides optimal depth of field, resolution, image contrast and clarity. The pixel counter assures that the required pixel resolution is met, and remote zoom and focus eliminate the need for hands-on fine tuning. The input/output port can be used for alarm notification or to control a relay. The outdoor-ready camera has an adjustable weather shield protecting it from rain, snow and direct sunlight.

Scalable and powerful solution Flexible storage options including RAID Available with 32 TB 32 AXIS Camera Station licenses included Extensive support and 5-year warranty

AXIS P3904-R is specially designed for HDTV 720p video surveillance in or on buses, trains, subway cars and emergency vehicles. The compact, rugged and discreet camera has IP67-rated protection against dust and water, and can withstand tough conditions such as vibrations, shocks and temperature fluctuations. The active tampering alarm detects tampering attempts, such as blocking or spray-painting. AXIS P3904-R is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained.

The bullet-style AXIS P1425-E provides excellent image quality in HDTV 1080p resolution. The camera features a varifocal P-iris lens. P-iris control provides optimal depth of field, resolution, image contrast and clarity. AXIS P1425-E supports Axis’ Corridor Format for vertically oriented video streams. The pixel counter assures that the pixel resolution of an object fulfills requirements for identification purposes. Remote zoom and focus eliminate the need for hands-on fine tuning. The input/output port can be used for notification to an alarm panel or control of a relay. The outdoor-ready camera has an adjustable weather shield protecting it from rain, snow and direct sunlight.

The bullet-style AXIS P1425-LE provides excellent image quality in HDTV 1080p resolution. The camera features a varifocal P-iris lens and Axis’ OptimizedIR, a power-efficient IR LED technology providing automatic illumination of a scene in complete darkness. P-iris control provides optimal depth of field, resolution, image contrast and clarity. AXIS P1425-LE supports Axis’ Corridor Format for vertically oriented video streams. The pixel counter assures that the required pixel resolution is met. Remote zoom and focus eliminate the need for hands-on fine tuning. The input/output port can be used for notification to an alarm panel or control of a relay. The outdoor-ready camera comes with an adjustable weather shield.

All-in-one solution with integrated PoE switch Ease of installation High-definition surveillance up to 4K Validated with extensive support AXIS Camera Station licenses included

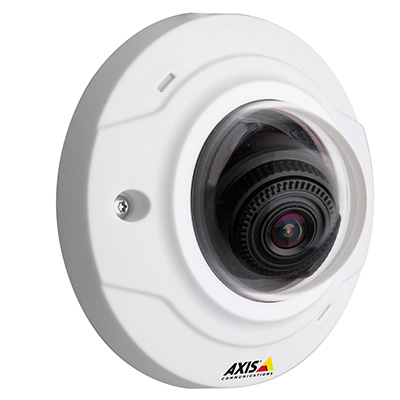

The palm-sized AXIS M3004-V is a vandal- and dust-resistant indoor fixed dome camera that supports HDTV 720p and 1 MP resolution. The factory-focused camera is designed for quick and flexible installation. With its 3-axis camera angle adjustment, it can be mounted on walls or ceilings, and images can be easily leveled. AXIS M3004-V offers a horizontal viewing angle of 80° and supports Axis’ Corridor Format for vertically oriented video streams of areas such as corridors, hallways or aisles.

With features such as Lightfinder and WDR – Forensic Capture, the bullet-style AXIS P1435-E provides excellent image quality in HDTV 1080p resolution, even in complex light conditions. The camera features corridor format, pixel counter, remote zoom and focus, as well as P-iris control – ensuring optimal depth of field, resolution, image contrast and clarity. The I/O port can be used for notification to an alarm panel or control of a relay. Axis’ Zipstream technology reduces bandwidth and storage requirements. The outdoor-ready camera comes with an adjustable weather shield.

The bullet-style AXIS P1405-E provides excellent image quality in HDTV 1080p resolution. It features a varifocal P-iris lens. P-iris control provides optimal depth of field, resolution, image contrast and clarity. AXIS P1405-E supports Axis’ Corridor Format for vertically oriented video streams of areas such as corridors, hallways or aisles. The pixel counter assures that the pixel resolution of an object fulfills requirements for identification purposes. Remote zoom and focus eliminate the need for hands-on fine tuning. The outdoor-ready camera has an adjustable weather shield protecting it from rain, snow and direct sunlight.

The bullet-style AXIS P1427-E provides excellent image quality in 5 megapixel resolution. The camera features a varifocal P-iris lens. P-iris control provides optimal depth of field, resolution, image contrast and clarity. AXIS P1427-E supports Axis’ Corridor Format for vertically oriented video streams. The pixel counter assures that the pixel resolution of an object fulfills requirements for identification purposes. Remote zoom and focus eliminate the need for hands-on fine tuning. The input/output port can be used for notification to an alarm panel or control of a relay. The outdoor-ready camera has an adjustable weather shield protecting it from rain, snow and direct sunlight.

* SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.

The bullet-style AXIS P1427-LE provides excellent image quality in 5 megapixel resolution. The camera features a varifocal P-iris lens and Axis’ OptimizedIR, a power-efficient IR LED technology providing automatic illumination of a scene in complete darkness. P-iris control provides optimal depth of field, resolution, image contrast and clarity. AXIS P1427-LE supports Axis’ Corridor Format for vertically oriented video streams. The pixel counter assures that the required pixel resolution is met. Remote zoom and focus eliminate the need for hands-on fine tuning. The input/output port can be used for notification to an alarm panel or control of a relay. The outdoor-ready camera comes with an adjustable weather shield.
