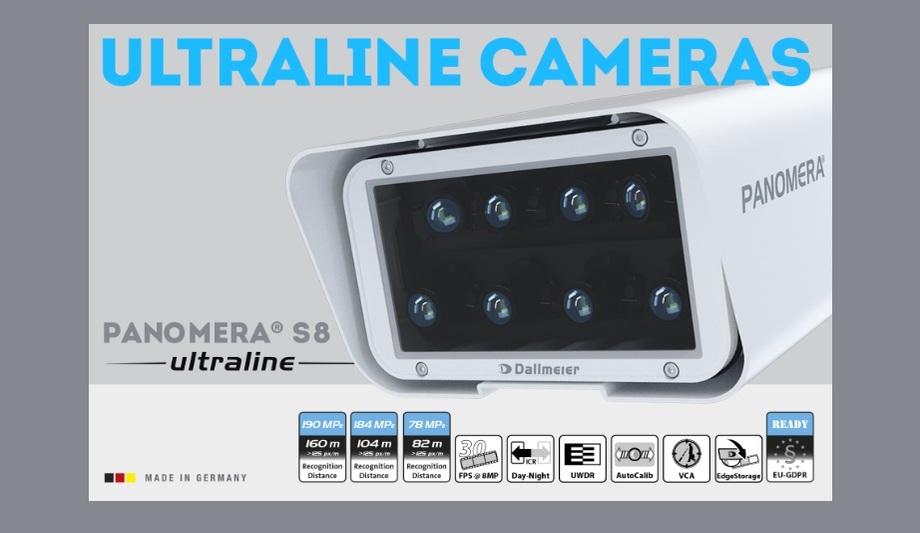

Since 2011, the patented Dallmeier Panomera multifocal sensor technology has provided comprehensive video protection for vast areas in many football stadiums, perimeters, airports and city areas all over the world. The new Panomera series, the Ultraline, has an exceptionally high resolution for these situations. Dallmeier presents the first model of the new series, the Panomera S8 Ultraline, which delivers up to 190 megapixels at 30 fps.
The Panomera concept has revolutionized video technology: with up to eight sensors in a single camera, it is possible to capture enormous distances in unprecedented resolution quality. With fewer cameras and considerably less expense for both infrastructure and management, the total cost of ownership of video solutions are reduced significantly. At the same time, customer specifications regarding pixel density and coverage can be satisfied.
The multifocal sensor system captures and stores all regions of the image space in the highest detail resolution
Up To 26,000 sqm Coverage With One Camera
The first model of the new Ultraline series, the Ultraline S8, has an excellent dynamic range of 130 dB UWDR (effective) for an extreme Panomera effect. This enables a resolution of 125 px/m up to a distance of 160, 104 or 82 m, enabling individuals to be recognised over the entire distance. Identification of persons (250 px/m) is supported up to a distance of 46 m depending on the model, observation (62 px/m) is possible even up to a distance of 322 m. This corresponds to a huge image space of more than 26,000 sqm with continuous depth of field.
Permanent Capture
The multifocal sensor system captures and stores all regions of the image space in the highest detail resolution. At the same time, it is not important whether the operators are concentrating on a specific region in live mode (multiple detail zoom) or if regions of interest are displayed in detail based on video content analysis (multiple auto-tracking). The Panomera recordings always include the entire area of interest and allow every operation to be analysed.
Made in Germany and GDPR-Ready
Like all Dallmeier cameras, the new Panomera model is manufactured entirely in Germany, at the Dallmeier factory in Regensburg. This in itself is a major factor in the manufacturer’s data protection and data security strategy, since it is then impossible for unauthorised persons to gain access through backdoors, for example. In all, 14 functions such as the setup of private zones, People Masking or the very latest encryption-authentication technology in the processing chain of Dallmeier solutions ensure that the strict requirements of the GDPR relating to data protection and data security are met. The manufacturer also offers detailed information, specifically with regards to video technology and the GDPR.
