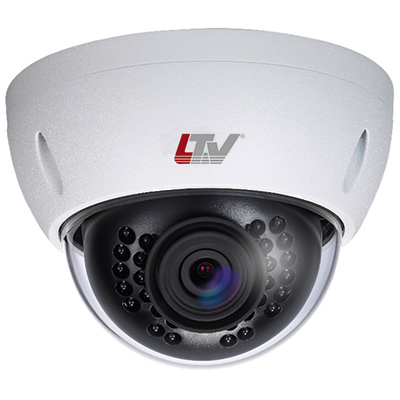

LTV Europe LTV-IWCDM2-SD8230L-F3.6 Wi-Fi Outdoor Mini Dome Camera
Technical Specification
Features:
- Make: LTV Europe
- Model code: LTV-IWCDM2-SD8230L-F3.6
- Series: Smart Line
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
Additional info:
H.264 & MJPEG dual-stream encoding Max. 25/30fps@1080P (1920 x 1080) DWDR, Day/Night, AWB, AGC, BLC 3.6mm fixed lens Wi-Fi IP66, IK10 DC 12V
Read more| Make | LTV Europe |
|---|---|
| Manufacturer | LTV Europe Sicherheitstechnik GmbH |
| Category | Video Surveillance>IP Dome cameras |
| Model code | LTV-IWCDM2-SD8230L-F3.6 |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 1920 x 1080 |
| Megapixel | Yes |
| Dome Type | Static |
| Sensitivity lux | 0 ~ 0.01 |
| Digital (DSP) | Yes |
| Indoor/Outdoor | Outdoor |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: < 4.5 W |
| Focal length | 3.6mm |
| Compression | H.264, M-JPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3 ~ 1/10,000s |
| S/ N (Signal/ Noise) Ratio dB | > 50 |
| Built-in IR LED | Yes |
| Network Properties |
Interface: RJ45, 10/100BASE-T Network Protocols: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP FIlter, QoS, Bonjour Image Frame Rate: 1 ~ 25/30 fps |
| Physical Specifications |
Dimensions mm: 110 x 81 Weight g: 390 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +50 C (-22 ~ +122 F) Operating Humidity %: < 95 Protection: IP66 |
| Additional info |
|
Compare LTV Europe LTV-IWCDM2-SD8230L-F3.6 with IP Dome cameras from other manufacturers
