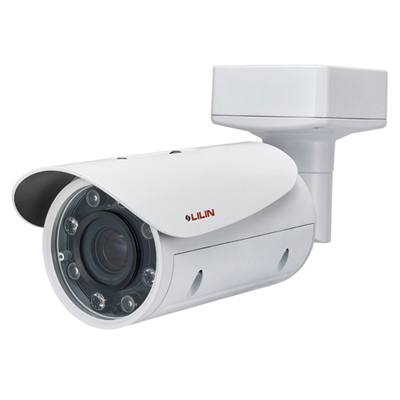

LILIN ZR8022EX20 Auto Focus Outdoor Bullet IR IP Camera
Technical Specification
| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | Video Surveillance>IP cameras |
| Model code | ZR8022EX20 |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution | 1080p |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Sensitivity Lux | 0 ~ 0.02 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications |
Voltage: PoE+ Power Consumption: 18W |
| Focal Length mm | 4.7 ~ 94 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1984 x 1105 |
| Network Properties |
Image Frame Rate: 30 fps Interface: 10Mbps / 100Mbps Base-T, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, Telnet, RTSP, RTCP, ICMP, IGMP, SNMP, SIP, ONVIF profile S, Bonjour |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/30(1/25)s ~ 1/8,000s |
| Zoom | Yes |
| Compression Type | H.264, Motion JPEG |
| Physical Specifications |
Weight g: 1800 Dimensions mm: 116 x 112 x 372 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) |
| System Requirements |
Operating System: Embedded Linux 2.6.32 Web Browser: Microsoft® Internet Explorer® 6.0 and later |
| Additional info |
|
