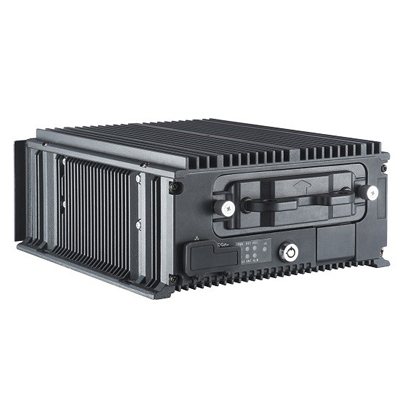

Hikvision DS-MP7608HN/M12 Mobile Video Recorder

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-MP7608HN/M12
  • Video inputs: 16
  • Inbuilt multiplexer: Yes
  • Recording system: HDD/SSD, SD card
Read more
Additional info:

Up to 1080p resolution of H.264/H.265 compression for each IP camera. One CVBS video output interface. One VGA video output interface with up to 1080p resolution. Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology. Store videos that has dropped frame in SD card when HDDs/SSDs are damaged). Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions. Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream. Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc. Specialized aviation connectors ensuring signal stability. Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown. Back up two upgrade packages to reduce risk of failure. Battery protection avoids vehicle from running out of battery. Wide-range power input (+9 VDC to +32 VDC). Power-off protection prevents key data from loss. Supports accessing via WEB browser. Aluminum die-cast chassis. Housing is available for protecting mobile video recorder from water.

Read more
Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-MP7608HN/M12
Video inputs 16
Inbuilt multiplexer Yes
Recording system HDD/SSD, SD card
Storage rate 25 ~ 30 fps
Resolution 1080p
Signal mode PAL, NTSC
Alarm Handling 6 in, 2 out
Voltage 9 ~ 32 V DC
Power consumption (W) ≤ 99 W
Weight (kg) 3.66
Dimensions (mm) 202 x 268 x 94
Operating temperature (°C) -10 ~ +60 C (14 ~ 140 F)
Operating humidity (%) 10 ~ 95
Additional info
  • Up to 1080p resolution of H.264/H.265 compression for each IP camera.
  • One CVBS video output interface.
  • One VGA video output interface with up to 1080p resolution.
  • Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology.
  • Store videos that has dropped frame in SD card when HDDs/SSDs are damaged).
  • Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
  • Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
  • Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc.
  • Specialized aviation connectors ensuring signal stability.
  • Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
  • Back up two upgrade packages to reduce risk of failure.
  • Battery protection avoids vehicle from running out of battery.
  • Wide-range power input (+9 VDC to +32 VDC).
  • Power-off protection prevents key data from loss.
  • Supports accessing via WEB browser.
  • Aluminum die-cast chassis.
  • Housing is available for protecting mobile video recorder from water.
