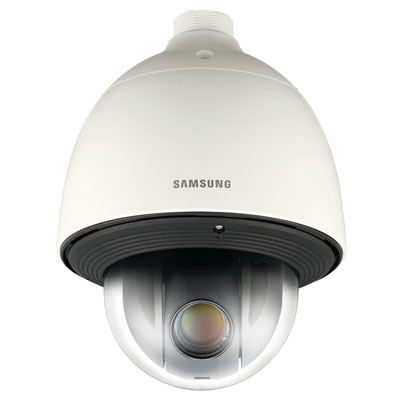

Hanwha Techwin America SCP-2373H PTZ Dome Camera With 680TVL Resolution
Technical Specification
Features:
- Make: Hanwha Vision
- Previously known as: Samsung
- Model code: SCP-2373H
- Chip Inch Size: 1/4
- Color Type: True Day / Night
Additional info:
Hanwha Techwin SCP-2373H is a high-resolution 680TVL PTZ dome camera that hosts a powerful 37x optical zoom lens. The low light performance is further enhanced by Hanwha Techwins SSNRIII noise reduction technology. Advanced features further improve the dome’s capabilities such as alarm schedules, highlight compensation, privacy masks and two control options RS-485 and the cable saving coaxial control. The SCP-2373H is protected against dust, heavy rain and high temperature variations.
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision America |
| Previously known as | Samsung |
| Category | Video Surveillance>Dome cameras |
| Model code | SCP-2373H |
| Chip Inch Size | 1/4 |
| Color Type | True Day / Night |
| Resolution TVL | 680 |
| Dome Type | PTZ |
| Sensitivity lux | 0.00002 |
| Pan Speed o/ sec | Preset : 500 |
| Digital (DSP) | Yes |
| Tilt Speed o/ sec | Preset : 500 |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 15 W |
| Focal length | 3.5 ~ 94.5 mm |
| Presets | 255 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | 52 |
| Synchronisation | Internal, Line lock |
| Signal Mode | NTSC, PAL |
| Video Output | CVBS : 1.0 Vp-p / 75ohms composite |
| Zoom Ratio | x27 |
| Physical Specifications |
Dimensions mm: 220 x 294 Weight g: 3,100 |
| Environmental Specifications |
Operating Temp oC: -50 ~ +55 C (-58 ~ +131 F) Operating Humidity %: 0 ~ 90 Protection: IP66 |
| Additional info | Hanwha Techwin SCP-2373H is a high-resolution 680TVL PTZ dome camera that hosts a powerful 37x optical zoom lens. The low light performance is further enhanced by Hanwha Techwins SSNRIII noise reduction technology. Advanced features further improve the dome’s capabilities such as alarm schedules, highlight compensation, privacy masks and two control options RS-485 and the cable saving coaxial control. The SCP-2373H is protected against dust, heavy rain and high temperature variations. |
