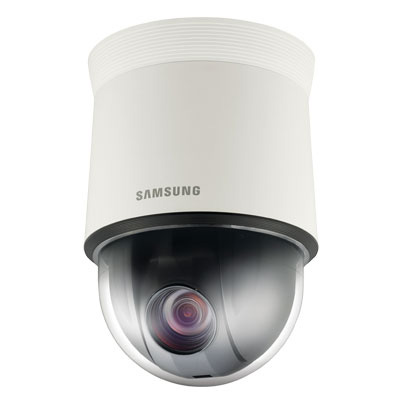

Hanwha Techwin America SCP-2373 680 TV Lines Day/night PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCP-2373 680 TV Lines Day/night PTZ Dome Camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-2373
Chip Inch Size: 1/4
Color Type: True Day / Night

Additional info:

Hanwha Techwin SCP-2373 is a high resolution 680 TV lines PTZ dome camera with 37x optical zoom lens. Some of its other advanced features include alarm schedules, highlight compensation, privacy masks and two control options RS-485 and the cable saving coaxial control.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Previously known as	Samsung
Category	Video Surveillance>Dome cameras
Model code	SCP-2373
Chip Inch Size	1/4
Color Type	True Day / Night
Resolution TVL	680
Sensitivity lux	0.01
Dome Type	PTZ
Pan Speed ^o/ sec	0.024 ~ 120
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.024 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15 W
Focal length	3.5 ~ 94.5mm
Presets	255
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000s
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal, Line-lock
Video Output	CVBS : 1.0 Vp-p / 75 Ohms composite
Physical Specifications	Dimensions mm: 152 x 218 Weight g: 1,600
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: < 90 Protection: IP66
Additional info	Hanwha Techwin SCP-2373 is a high resolution 680 TV lines PTZ dome camera with 37x optical zoom lens. Some of its other advanced features include alarm schedules, highlight compensation, privacy masks and two control options RS-485 and the cable saving coaxial control.
