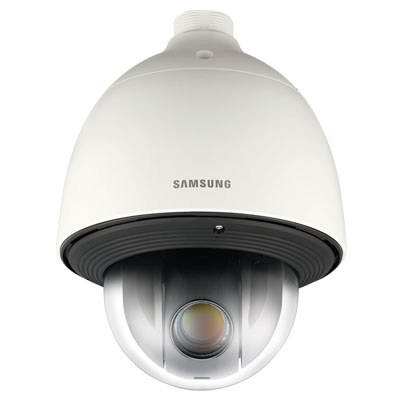

Hanwha Techwin America SCP-2371H 600 TV Lines Day/night PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCP-2371H 600 TV Lines Day/night PTZ Dome Camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-2371H
Chip Inch Size: 1/4
Color Type: Color / Monochrome

Additional info:

Hanwha Techwin SCP-2371H PTZ dome camera includes 37x optical zoom with ultra low light level capabilities of 0.2 lux color and 0.02 lux B/W without sens-up activated.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Previously known as	Samsung
Category	Video Surveillance>Dome cameras
Model code	SCP-2371H
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	600
Dome Type	PTZ
Sensitivity lux	0.02
Pan Speed ^o/ sec	0.024 ~ 120
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.024 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15 W
Focal length	3.5 ~ 129.5mm
Presets	255
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000s
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal, Line-lock
Video Output	CVBS : 1.0 Vp-p / 75 Ohms composite
Zoom Ratio	x37
Physical Specifications	Dimensions mm: 220 x 294 Weight g: 3,100
Environmental Specifications	Operating Temp ^oC: -50 ~ +55 C (-58 ~ +131 F) Operating Humidity %: < 90 Protection: IP66
Additional info	Hanwha Techwin SCP-2371H PTZ dome camera includes 37x optical zoom with ultra low light level capabilities of 0.2 lux color and 0.02 lux B/W without sens-up activated.
