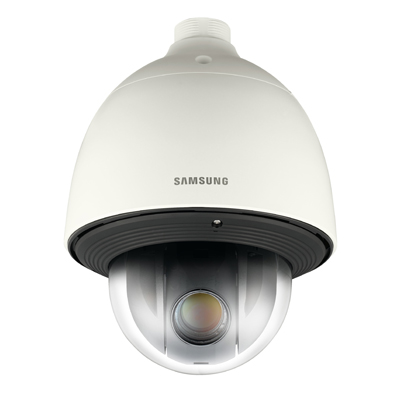

Hanwha Techwin America SCP-2273H 1/4 Inch True Day/night PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCP-2273H 1/4 Inch True Day/night PTZ Dome Camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-2273H
Chip Inch Size: 1/4
Color Type: Color / Monochrome

Additional info:

Hanwha Techwin SCP-2273H is a 1/4 inch true day/night PTZ dome camera with high resolution of 680TV line, min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W), powerful 27x zoom (3.5 ~ 94.5mm), digital 16x, true day & night (ICR), MD, SSNRIII, coaxial control and IP66 protection.

Contact manufacturer Contact manufacturer

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Previously known as	Samsung
Category	Video Surveillance>Dome cameras
Model code	SCP-2273H
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	680
Dome Type	PTZ
Sensitivity lux	0.00004
Pan Speed ^o/ sec	0.024 ~ 120
Digital (DSP)	Yes
Indoor/Outdoor	Indoor/Outdoor
Tilt Speed ^o/ sec	0.024 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15 W
Focal length	3.5 ~ 94.5 mm
Rotation Angles^o	360
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/50 ~ 1/120,000 sec
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line lock
Video Output	CVBS 1.0 Vp-p / 75 ohm composite
Zoom Ratio	x27
Physical Specifications	Dimensions mm: 220 x 294 Weight g: 3,100
Environmental Specifications	Operating Temp ^oC: -50 ~ +55 C (-58 ~ +131 F) Operating Humidity %: <90 Protection: IP66
Additional info	Hanwha Techwin SCP-2273H is a 1/4 inch true day/night PTZ dome camera with high resolution of 680TV line, min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W), powerful 27x zoom (3.5 ~ 94.5mm), digital 16x, true day & night (ICR), MD, SSNRIII, coaxial control and IP66 protection.
