Hanwha Techwin America SCP-2273 680 TV Lines True Day/night PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

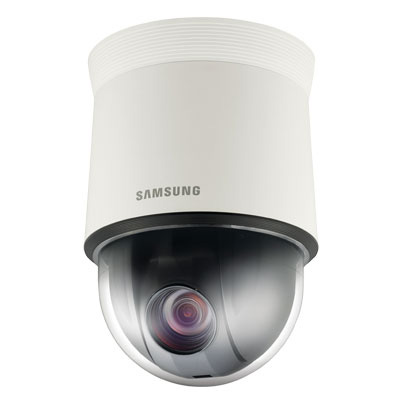

Hanwha Techwin America SCP-2273 680 TV Lines True Day/night PTZ Dome Camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-2273
Chip Inch Size: 1/4
Color Type: True Day / Night

Additional info:

Hanwha Techwin SCP-2273 is a high resolution PTZ dome camera with x27 zoom lens. The camera's 0.2/0.1 lux low light performance is enhanced by it's SSNRIII noise reduction technology. In addition, it has Coaxial control (Pelco-C) and RS-485.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Previously known as	Samsung
Category	Video Surveillance>Dome cameras
Model code	SCP-2273
Chip Inch Size	1/4
Color Type	True Day / Night
Resolution TVL	680
Dome Type	PTZ
Sensitivity lux	0.01
Pan Speed ^o/ sec	0.024 ~ 120
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.024 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15 W
Focal length	3.5 ~ 129.5mm
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000s
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal, Line-lock
Video Output	1.0 Vp-p / 75 Ohms composite
Zoom Ratio	x27
Physical Specifications	Dimensions mm: 152 x 218 Weight g: 1,600
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: < 90 Protection: IP66
Additional info	Hanwha Techwin SCP-2273 is a high resolution PTZ dome camera with x27 zoom lens. The camera's 0.2/0.1 lux low light performance is enhanced by it's SSNRIII noise reduction technology. In addition, it has Coaxial control (Pelco-C) and RS-485.
