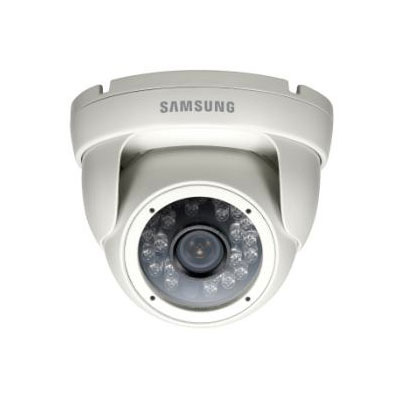

Hanwha Techwin America SCD-2021R 650 TV Lines IR Dome Camera
Technical Specification
| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision America |
| Previously known as | Samsung |
| Category | Video Surveillance>Dome cameras |
| Model code | SCD-2021R |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 650 |
| Dome Type | Fixed |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC |
| Focal length | 3.6mm |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | 46 |
| Synchronisation | Internal |
| Built-in IR LED | Yes |
| Video Output | CVBS : 1.0 Vp-p / 75 Ohm composite |
| Physical Specifications |
Dimensions mm: 93 x 78 Weight g: 160 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +40 C (14 ~ 104 F) Operating Humidity %: < 90 |
| Additional info | Hanwha Techwin SCD-2021R is a high resolution small IR dome camera with built-in fixed lens. |
